AccuAir Air Ride Kit for Acura Integra Type R DC2

Specifications

Overview

The e-Level+ from AccuAir for the Acura Integra Type R DC2 is a height based management that features 3 programmable height presets with the added ability of individual, four corner, air spring control. AccuAir's eLevel+ system allows you to control your vehicle's suspension with a physical controller or through your smartphone with the e-Level Plus app. Direct plug-n-play with the ENDO-T and ENDO-VT air tank systems allow for one of the cleanest management setups on the market.

AccuAir e+ Management air management

The e+ Connect ECU from AccuAir is the basis of their new upgradeable management architecture. Out of the box, it functions like an analog system, allowing individual AND paired up-and-down controls for all 4 corners of your vehicle. Add the Pressure+ or Height+ upgrade to add preset functionality, allowing you to return to a saved pressure or height at the push of a single button. It is capable of wireless control via the free ePlus smartphone app which also displays tank pressure, or you can add a physical controller as well.

Features

• 3 programmable heights
• Visual display of each sensor's height percentage
• Automatic calibration
• Air tank pressure readout on the e-Level Plus smartphone app
• RGB backlighting that allows you to change the color of your ECU
• Included wiring harness for direct plug-n-play with the ENDO-T and ENDO-VT air tank systems
• Bluetooth 5.0
• Control your air suspension with your smartphone using the e-Level Plus app
• Compressor status indicator light
• Over the air updates
• Battery saver mode that sleeps the system after 24 hours

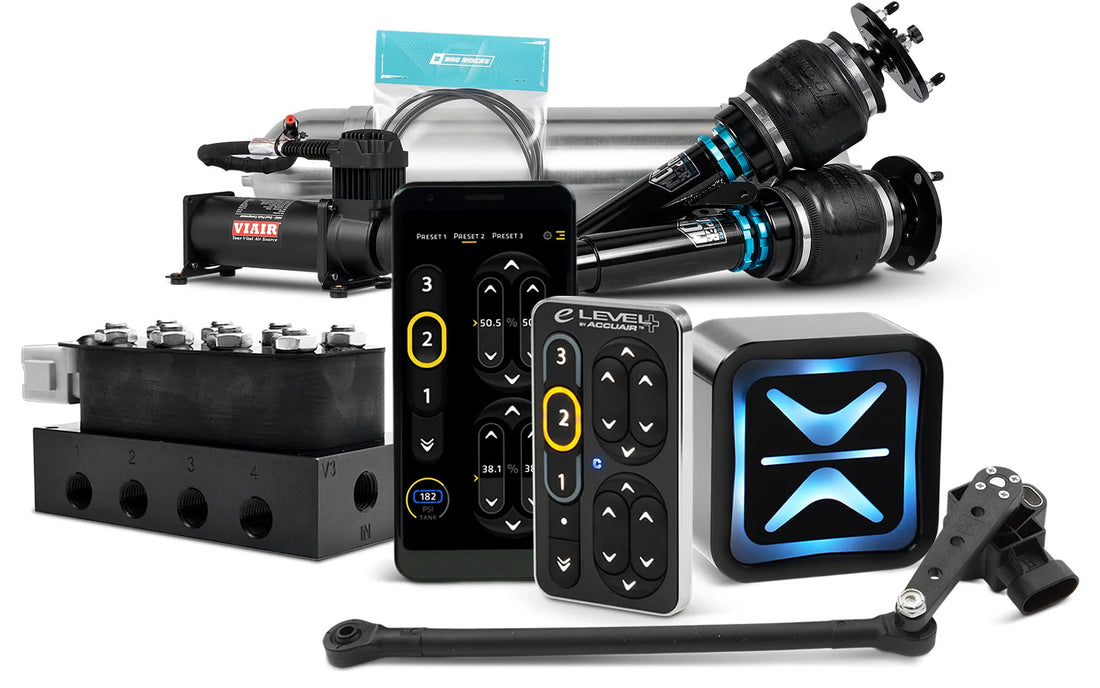

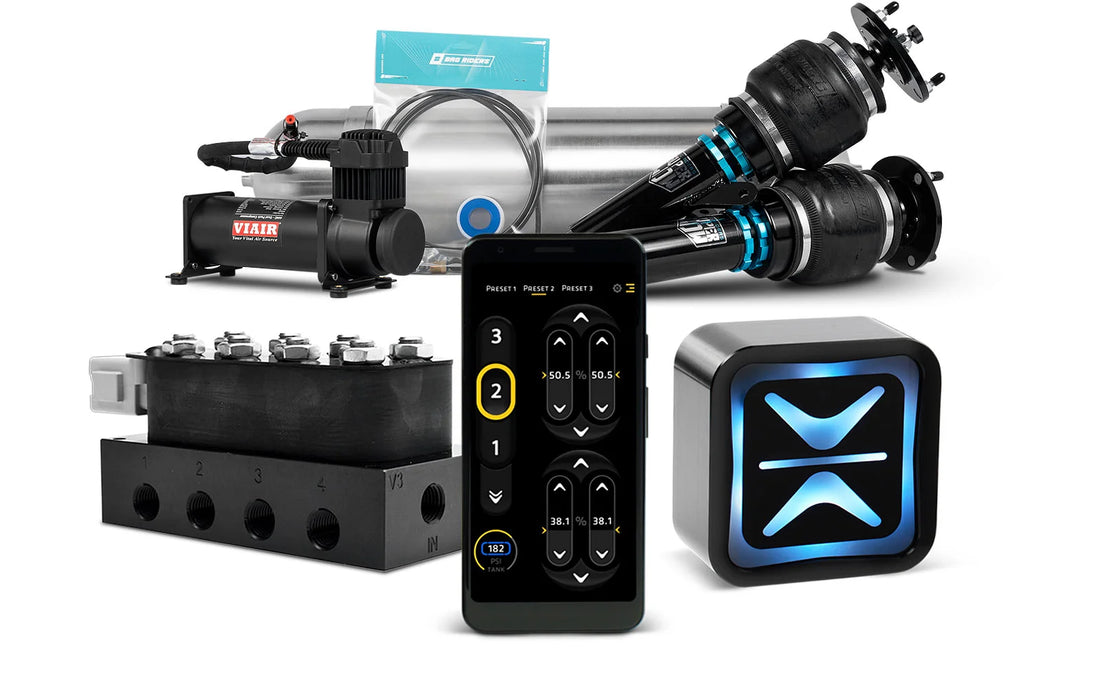

AccuAir e-Level+ Air Management Package Includes

• AccuAir e-Level+ System
• — e-Level+ ECU
• — (4) height sensors
• — e-Level+ TouchPad controller (optional)
• — ECU main harness
• — ECU valve harness
• — e-Level+ height sensor harness
• — Digital pressure sensor
• Aluminum air tank of your choice
• Compressor(s) of your choice
• 40amp Relay(s) for your compressor(s)
• Relay wiring kit(s)
• Inflation Valve
• Air Tank Drain Kit
• Air Line Cutter Tool
• (1) 60ft Bundle of DOT Approved Air Line**

Build your kit

• Suspension Kit: 2 options
• System & Air Line: 2 options
• Sensor Upgrade: 2 options
• Physical Controller Upgrade: 1 option
• Air Tank: 5 options
• Compressor: 8 options
• Easy-Install Management Board: 2 options
• Pedestal Mounts: 5 options
• Upgraded Compressor Check Valve: 4 options
• Compressor Silencer: 4 options

Compatible vehicles

• Acura Integra Type R DC2 (1997-2001) FWD
