AccuAir Air Ride Kit for Mazda MX-5 Miata NC
Specifications
Overview
AccuAir's e-Level+ for the Mazda MX-5 Miata NC is a height-based management system featuring 3 programmable height presets, with the added ability to control each air spring individually at all four corners. AccuAir's e-Level+ system lets you control your vehicle's suspension with a physical controller or through your smartphone using the e-Level Plus app. Direct plug-and-play compatibility with the ENDO-T and ENDO-VT air tank systems allows for one of the cleanest management setups on the market.
AccuAir e+ Management air management
AccuAir's e+ Connect ECU is the foundation of its new upgradeable management architecture. Out of the box, it functions like an analog system, allowing individual and paired up-and-down controls for all four corners of your vehicle. Add the Pressure+ or Height+ upgrade to enable preset functionality, letting you return to a saved pressure or height at the push of a single button. It supports wireless control via the free ePlus smartphone app, which also displays tank pressure, and you can also add a physical controller.
Features
- 3 programmable heights
- Visual display of each sensor's height percentage
- Automatic calibration
- Air tank pressure readout in the e-Level Plus smartphone app
- RGB backlighting lets you change the color of your ECU
- Wiring harness included for direct plug-and-play compatibility with ENDO-T and ENDO-VT air tank systems
- Bluetooth 5.0
- Control your air suspension with your smartphone using the e-Level Plus app
- Compressor status indicator light
- Over-the-air updates
- Battery saver mode puts the system to sleep after 24 hours

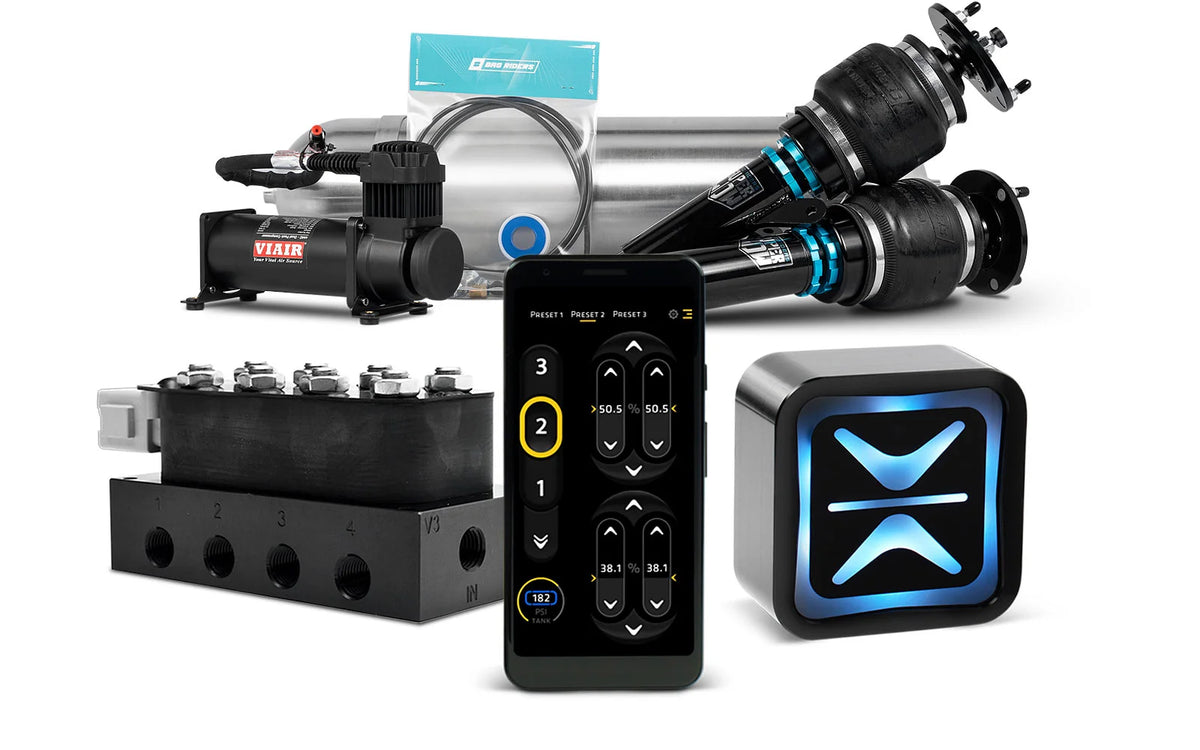

AccuAir e-Level+ Air Management Package Includes
- AccuAir e-Level+ System
- — e-Level+ ECU
- — (4) height sensors
- — e-Level+ TouchPad controller (optional)
- — ECU main harness
- — ECU valve harness
- — e-Level+ height sensor harness
- — Digital pressure sensor
- Aluminum air tank of your choice
- Compressor(s) of your choice
- 40-amp relay(s) for your compressor(s)
- Relay wiring kit(s)
- Inflation valve
- Air tank drain kit
- Air line cutter tool
- (1) 60-ft bundle of DOT-approved air line**
Build your kit
- Suspension kit: 2 options
- System & air line: 2 options
- Sensor upgrade: 2 options
- Physical controller upgrade: 1 option
- Air tank: 5 options
- Compressor: 8 options
- Easy-install management board: 2 options
- Pedestal mounts: 5 options
- Upgraded compressor check valve: 4 options
- Compressor silencer: 4 options
Compatible vehicles
- Mazda Miata NC (2006-2015) RWD
- Mazda MX-5 NC (2006-2015) RWD
