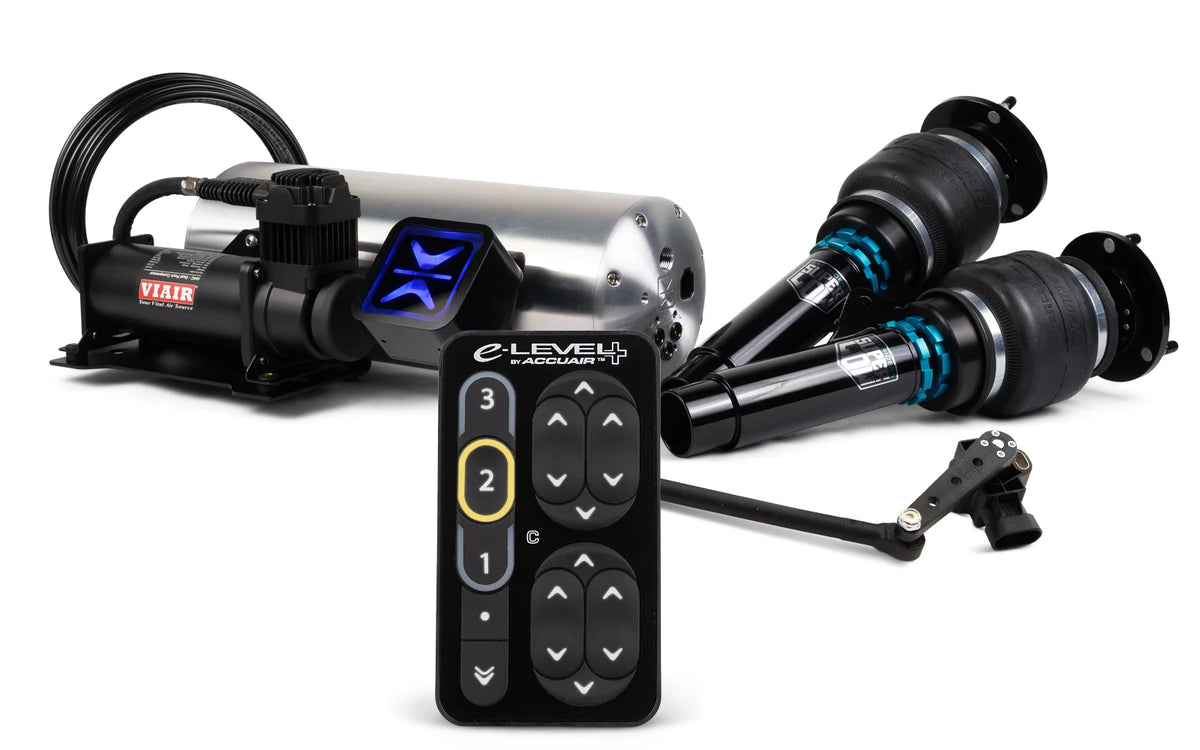

AccuAir ENDO Air Ride Kit for Mazda MX-5 Miata NC
Specifications
Overview
Looking to bag your Mazda MX-5 Miata NC with one of the most advanced and cleanest setups on the market? The AccuAir ENDO Air Ride Kit combines the cutting-edge technology of e-Level+ management with the ultra-sleek ENDO-T or ENDO-VT air tank systems.
At the heart of this kit is the e+ Connect ECU, an intelligent height-based management system. With the included height sensors, you get three programmable presets plus a dedicated "all-down" button to instantly air out when parked. Control your ride directly from your smartphone via the free ePlus app, or upgrade to the physical TouchPad+ for tactile, at-your-fingertips control.
The real star of the show is the ENDO-VT tank. By housing the system's valves directly inside the tank endcaps, it completely eliminates the need for a standalone manifold (like a VU4). This drastically cuts down on plumbing and wiring, resulting in an incredibly clean trunk setup that matches the premium aesthetic of your Mazda MX-5 Miata NC.
AccuAir e-Level+ air management
The e+ Connect ECU from AccuAir is the basis of their e-Level+ system. With the included level sensors, you get 3 preset heights plus a dedicated all-down button, allowing you to air-out when parked or to return to a saved height at the push of a single button. It is capable of wireless control via the free ePlus smartphone app which also displays tank pressure, and the included controller allows access to these presets as well as individual corner control.
Details
- 3 programmable heights, plus a dedicated all-down button
- Visual display of each sensor's height percentage in the ePlus app
- Automatic calibration
- Control your air suspension with your smartphone using the ePlus app
- Air tank pressure readout on the ePlus app
- RGB backlighting that allows you to change the color of your ECU
- Battery saver mode that sleeps the system after 24 hours
- Bluetooth 5.0
- Over the air updates
- Compressor status indicator light via optional Touchpad+ Upgrade
Details
- — AccuAir e+ ECU
- — ECU wiring harness
- — Valve wiring pigtail
- — Digital pressure sensor
- — ePlus smartphone app
- — Mounting hardware
- — (4) Height sensors & linkage
- — Height sensor harness
- — Touchpad+ physical controller
- — Touchpad harness
- ENDO-VT valve tank in 3 or 5 gallon
- Compressor(s) of your choice
- 40amp Relay(s) for your compressor(s)
- Relay wiring kit(s)
- Air Tank Drain/Emergency Fill Valve
- (1) 60ft Bundle of DOT Approved Air Line**
- Air Line Cutter Tool
Build your kit
- Suspension Kit: 2 options
- System & Air Line: 2 options
- Air Tank/Manifold: 2 options
- Physical Controller Upgrade: 1 option
- Compressor: 8 options
- Upgraded Compressor Check Valve: 4 options
Compatible vehicles
- Mazda Miata NC (2006-2015) RWD
- Mazda MX-5 NC (2006-2015) RWD
