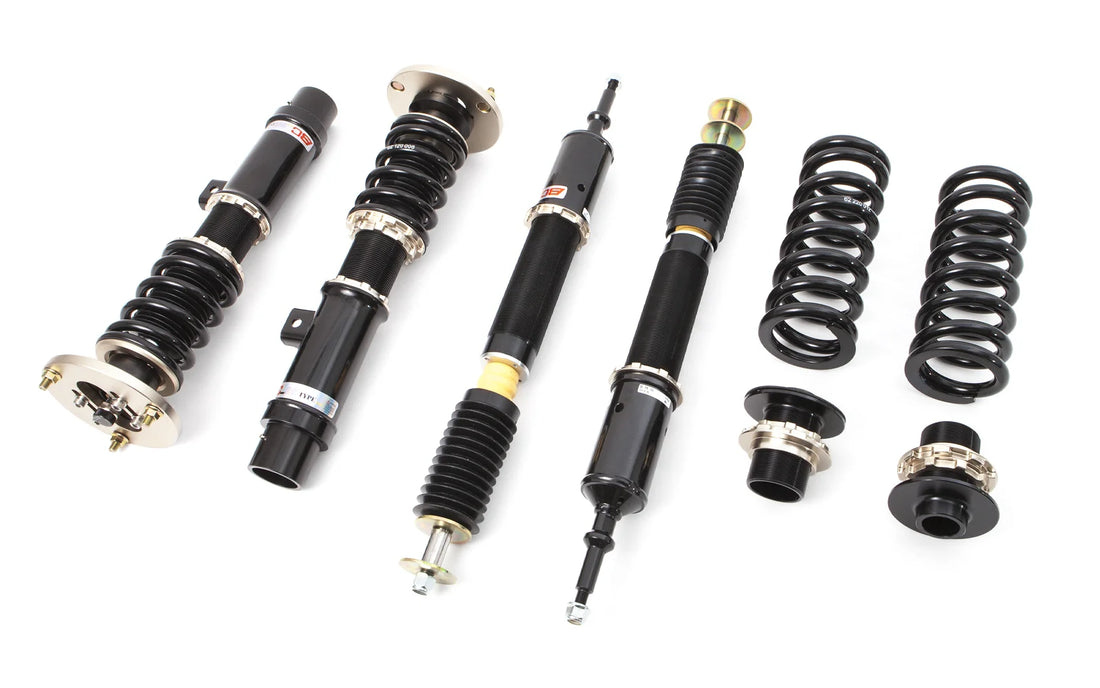

BC Racing BR Series Coilovers for Cadillac ATS AWD

Specifications

Overview

BC Racing BR Series Coilovers for the Cadillac ATS AWD are the best-selling entry point into fully adjustable coilover suspension. BC Racing is known to deliver real handling performance without sacrificing ride comfort or daily drivability. This setup is developed and tested specifically for the Cadillac ATS AWD, built around a mono-tube damper with 30-way damping adjustment and ride height adjustable independent of spring preload.

BR Series coilovers on the Cadillac ATS AWD aren't locked into a coil spring setup for life. Because they feature fully-threaded shock bodies, these coilovers convert to a full air suspension setup by simply removing the coil springs and threading on a set of coilover conversion bags in their place. Want to start out with coils and move to air suspension in the future? This makes the BR Series a practical starting point for owners who want coilover-level adjustability now but may want to move to air suspension down the road, or who want to keep that option open without committing to a full air ride kit up front.

Features

• Mono-tube shock design
• Linear piston and damping curve
• Height adjustment via shock body (independent of spring preload)
• Front camber plates standard on applicable kits
• Rear camber plates available where applicable
• 30 way damping adjustment
• 1 year warranty against manufacturer defects
• Fully rebuildable

Technical specifications

• Front Suspension Type: MacPherson
• Rear Suspension Type: Separate Spring & Shock
• Drivetrain Compatibility: AWD
• Camber Plates: Front camber plates only
• Damping Adjustment: Yes
• Adjustable Lower Mount: Yes

Compatible vehicles

• Cadillac ATS 1st Gen (2013-2019) AWD
