Specifications

Overview

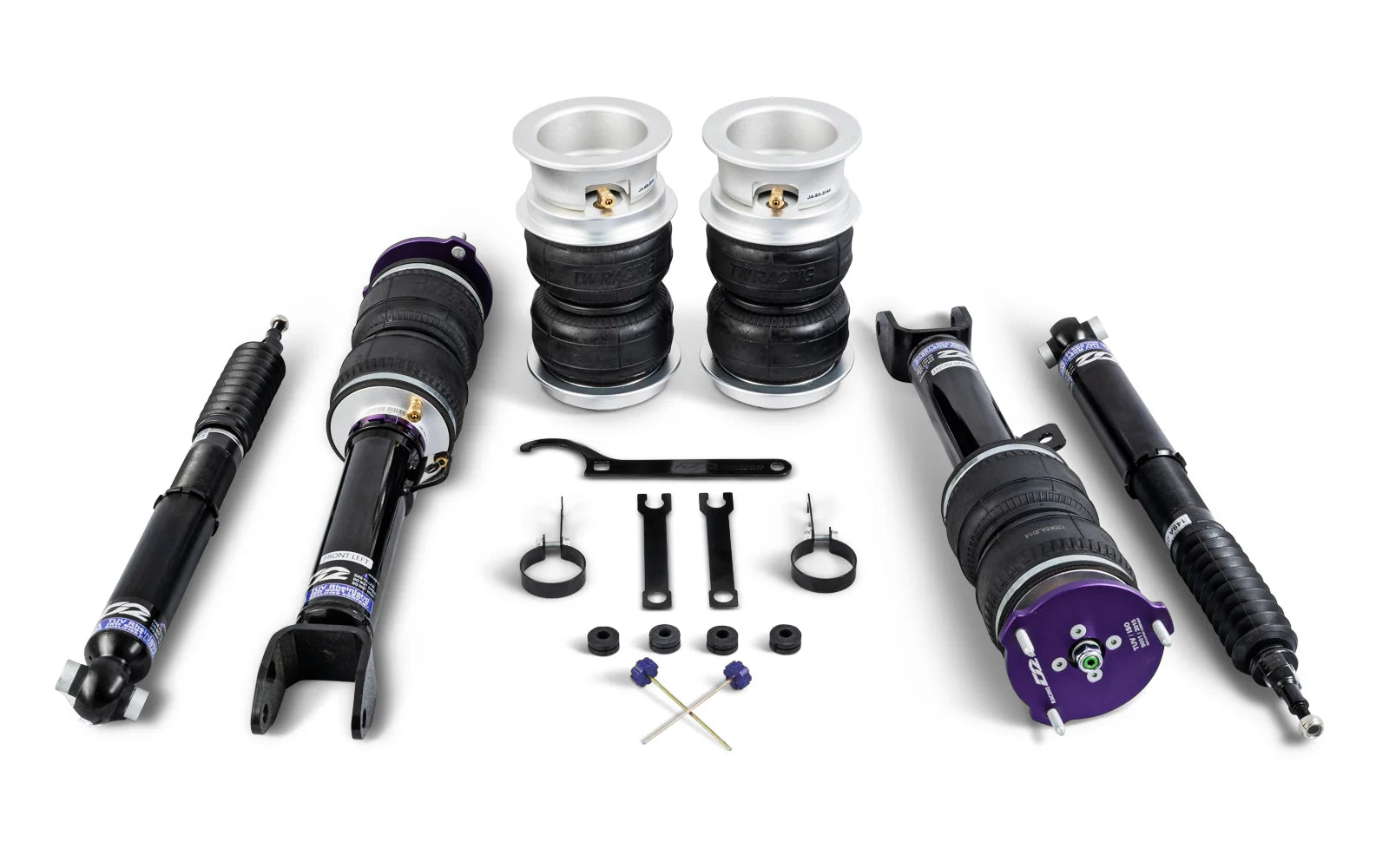

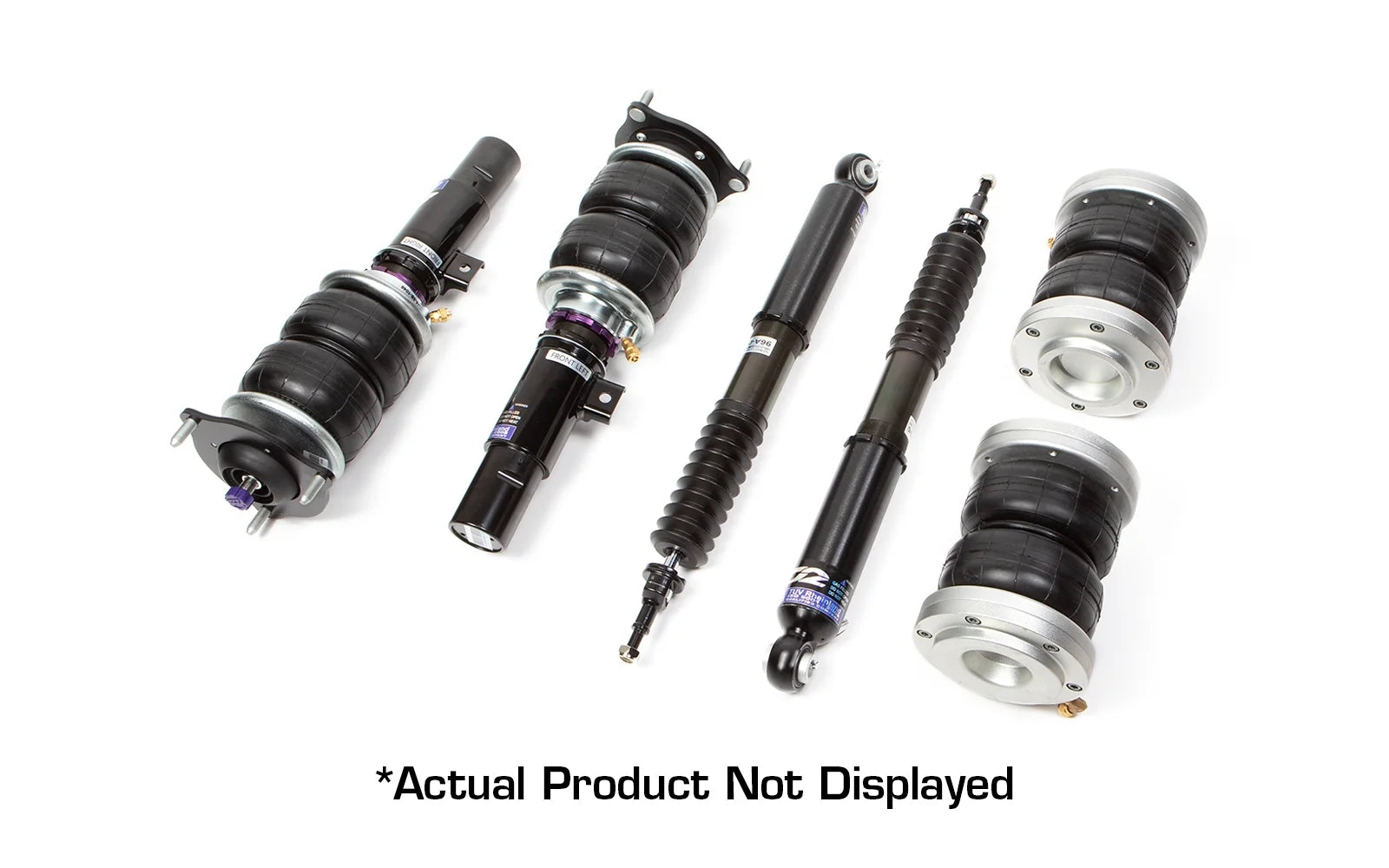

D2 Racing air suspension for the Honda CR-V 5th Gen features fully threaded, 36-way damping adjustable struts with adjustable lower mounts for precise ride height and ride quality tuning.

This is a complete front and rear kit that includes the air suspension for all four corners of your Honda CR-V 5th Gen:

Each D2 Racing shock features a 36-way damping adjustable internal damper, built to RS-Series quality standards with air suspension specific valving that accounts for PSI changes as you adjust ride height. Turn the included knobs to move between a softer, daily-comfort setting and a firmer, more responsive feel - no tools required once installed.

Just like a traditional coilover, the shock body itself is fully threaded on the D2 Racing shocks. Spin the lower mount up or down to set the baseline length of the shock, giving you the ultimate range of ride height adjustment without sacrificing stroke travel or bag pressure.

What's Included in This Air Suspension Kit

• D2 Racing front air suspension
• D2 Racing rear air suspension
• (4) 1/4" tube - 1/8" BSPT compression elbows
• (2) Spanner tools
• (4) Damping adjustment knobs

Technical specifications

• Front Suspension Type: MacPherson
• Rear Suspension Type: Separate Spring & Shock
• Drivetrain Compatibility: FWD & AWD
• Camber Plates: Sold Separately
• Front Bag Type: Sleeve Style
• Rear Bag Type: Sleeve Style
• Damping Adjustment: Yes
• Adjustable Lower Mount: Yes
• Leader Lines: No
• Fittings Included: 1/4" Compression

Compatible vehicles

• Honda CR-V 5th Gen (2017-2022) AWD
• Honda CR-V 5th Gen (2017-2022) FWD

Shipping & warranty
