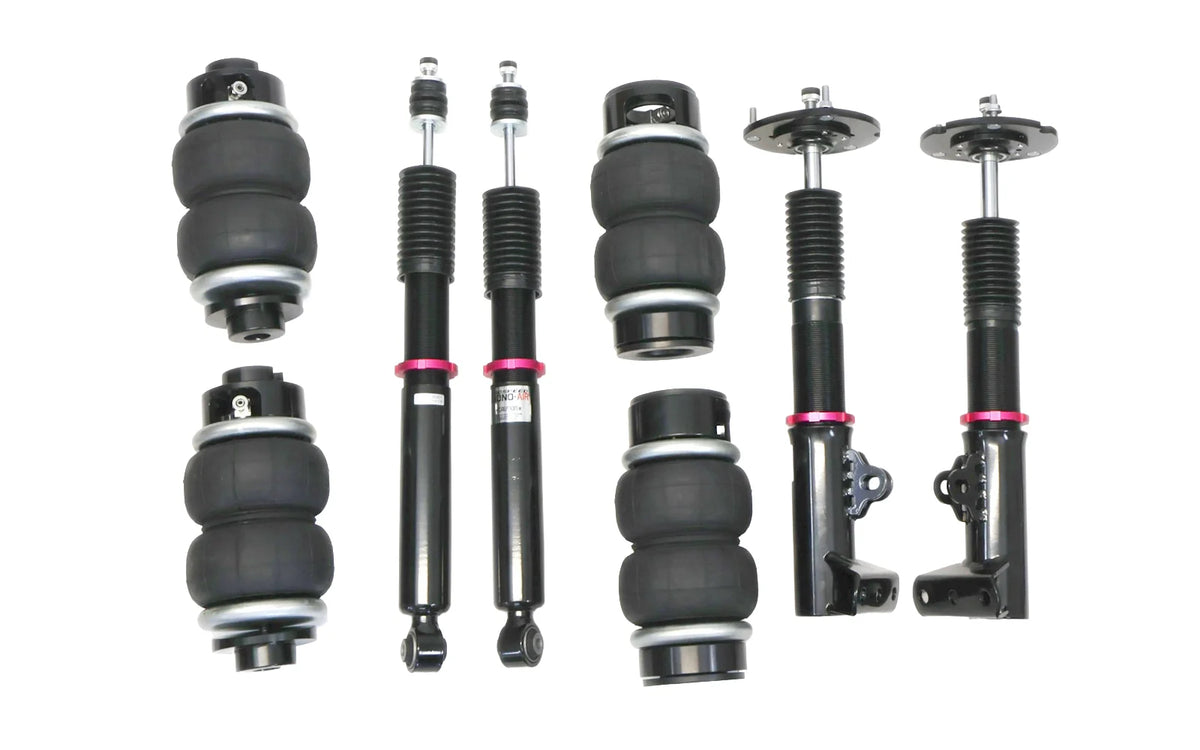

Godspeed Mono-AIR Suspension for Mercedes 190 W201 & E-Class W124

Specifications

Overview

Godspeed Project's Mono-AIR suspension for the Mercedes 190 W201 & E-Class W124 includes both front & rear suspension featuring fully-threaded shock bodies for total ride-height adjustability, and 32-way adjustable rebound damping, allowing you to fine-tune the way your vehicle handles.

This is a complete front and rear kit that includes the air suspension for all four corners of your Mercedes 190 W201 & E-Class W124:

Each Godspeed Mono-AIR shock features a 32-way rebound-adjustable internal damper, built with specific valving matched to your vehicle. The included knobs allow you to adjust the rebound speed after hitting a bump, meaning you have control over how fast or slow the suspension moves back to its set height.

Just like a traditional coilover, the shock body itself is fully threaded on the Godspeed shocks. Spin the lower mount up or down to set the baseline length of the shock, giving you the ultimate range of ride height adjustment without sacrificing stroke travel or bag pressure.

What's Included in This Mono-AIR Kit

• Godspeed Mono-AIR front air suspension
• Godspeed Mono-AIR rear air suspension
• (2) Spanner tools
• (4) Damping adjustment knobs

Technical specifications

• Front Suspension Type: Separate Spring & Shock
• Rear Suspension Type: Separate Spring & Shock
• Drivetrain Compatibility: RWD
• Camber Plates: None
• Front Bag Type: Double Bellow
• Rear Bag Type: Double Bellow
• Damping Adjustment: Yes
• Adjustable Lower Mount: Yes
• Leader Lines: No
• Fittings Included: 8mm Compression

Fittings

• No fittings: $1,188.00
• 1/4" air line fittings: $1,213.00
• 3/8" air line fittings: $1,226.00

Compatible vehicles

• Mercedes-Benz 190 W201 (1984-1993) RWD
• Mercedes-Benz E-Class W124 Sedan (1985-1995) RWD
