Overview

Godspeed Project's Mono-AIR suspension for the VW Golf/GTI/Jetta Mk5 Mk6 & Audi A3/TT Mk2 includes both front & rear suspension featuring fully-threaded shock bodies for total ride-height adjustability, and 32-way adjustable rebound damping, allowing you to fine-tune the way your vehicle handles.

This is a complete front and rear kit that includes the air suspension for all four corners of your VW Golf/GTI/Jetta Mk5 Mk6 & Audi A3/TT Mk2:

Each Godspeed Mono-AIR shock features a 32-way rebound-adjustable internal damper, built with specific valving matched to your vehicle. The included knobs allow you to adjust the rebound speed after hitting a bump, meaning you have control over how fast or slow the suspension moves back to it's set height.

Just like a traditional coilover, the shock body itself is fully threaded on the Godspeed shocks. Spin the lower mount up or down to set the baseline length of the shock, giving you the ultimate range of ride height adjustment without sacrificing stroke travel or bag pressure.

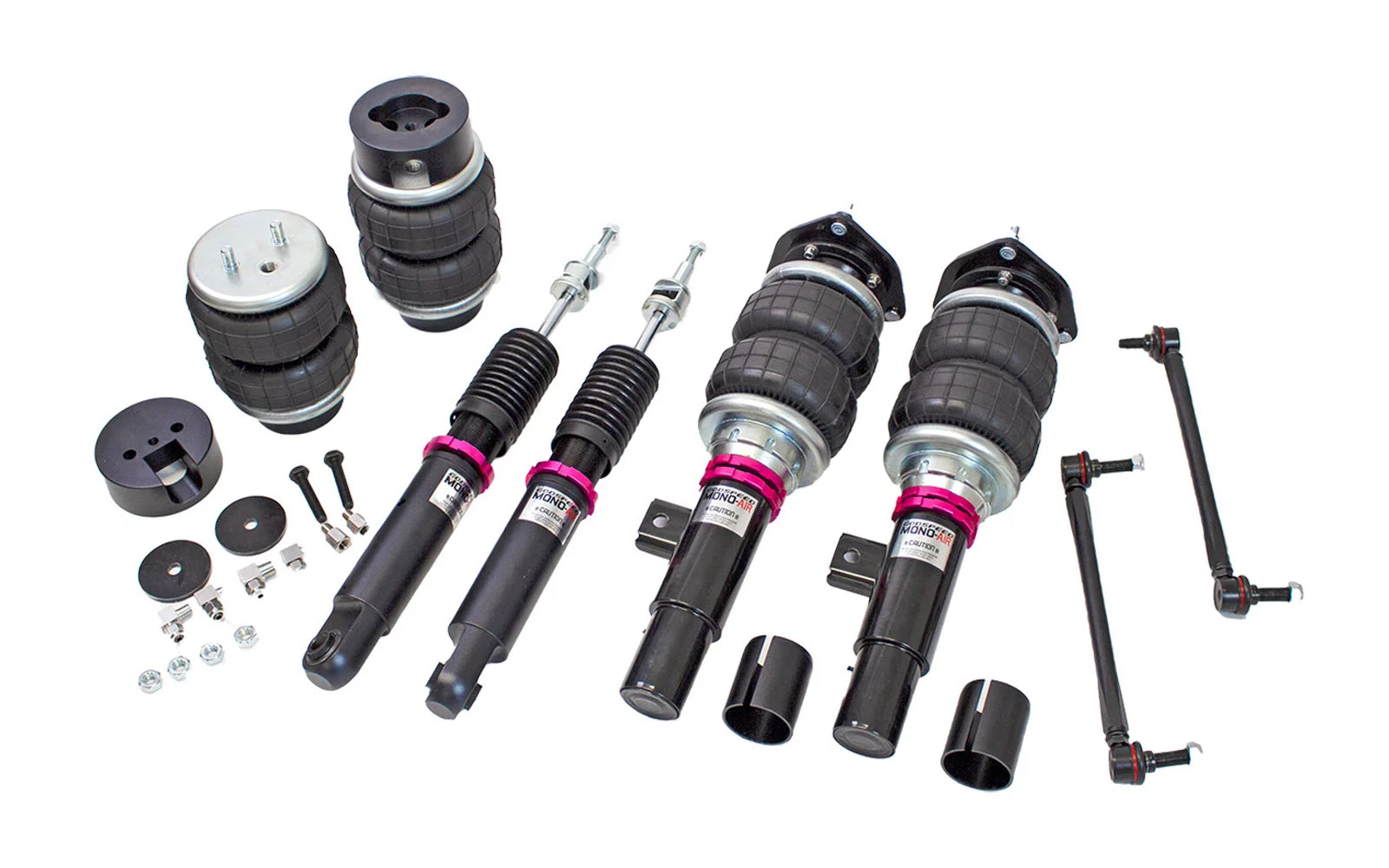

What's Included in This Mono-AIR Kit

• Godspeed Mono-AIR front air suspension
• Godspeed Mono-AIR rear air suspension
• (2) Spanner tools
• (4) Damping adjustment knobs

Technical specifications

• Front Suspension Type: MacPherson
• Rear Suspension Type: Separate Spring & Shock
• Drivetrain Compatibility: FWD & AWD
• Camber Plates: None
• Front Bag Type: Double Bellow
• Rear Bag Type: Double Bellow
• Damping Adjustment: Yes
• Adjustable Lower Mount: Yes
• Leader Lines: No
• Fittings Included: 8mm Compression

Fittings

• No fittings: $1,188.00
• 1/4" air line fittings: $1,213.00
• 3/8" air line fittings: $1,226.00

Compatible vehicles

• Audi RS 3 8P (2011-2012) AWD
• Audi S3 8P (2007-2012) AWD
• Audi TT Mk2 (2008-2015) AWD
• Audi TT Mk2 (2008-2015) FWD
• Audi TT RS Mk2 (2012-2013) AWD
• Audi TTS Mk2 (2009-2015) AWD
• Audi A3 8P (2003-2013) AWD
• Audi A3 8P (2003-2013) FWD
• Seat Altea Mk1 (2004-2016) FWD
• Seat Leon Mk2 (2005-2013) FWD
• Skoda Octavia Mk2 (2005-2012) FWD
• Skoda Superb B6 (2008-2015) FWD
• Volkswagen CC B6 (2009-2017) AWD
• Volkswagen CC B6 (2009-2017) FWD
• Volkswagen Golf Mk5 (2006-2009) FWD
• Volkswagen Golf Mk6 (2010-2014) FWD
• Volkswagen Golf R Mk6 (2012-2013) AWD
• Volkswagen GTI Mk5 (2006-2009) FWD
• Volkswagen GTI Mk6 (2010-2014) FWD
• Volkswagen Jetta Mk6 Sport (2015-2016) FWD
• Volkswagen Jetta GLI Mk5 (2006-2009) FWD
• Volkswagen Jetta GLI Mk6 (2011-2018) FWD
• Volkswagen Jetta Sportwagen Mk5 (2009) FWD
• Volkswagen Jetta Sportwagen Mk5.5 (2010-2014) FWD
• Volkswagen Passat B6 (2006-2010) AWD
• Volkswagen Passat B6 (2006-2010) FWD
• Volkswagen Passat B7 (2011-2014) AWD
• Volkswagen Passat B7 (2011-2014) FWD
• Volkswagen Passat NMS (2012-2022) FWD
• Volkswagen R32 Mk5 (2008) AWD
• Volkswagen Rabbit Mk5 (2006-2009) FWD
• Volkswagen Scirocco Mk3 (2008-2015) FWD
• Volkswagen Eos (2007-2015) FWD
• Volkswagen Jetta Mk5 (2005.5-2010) FWD
• Volkswagen Jetta Mk6 SE Late Term (2014-2018) FWD
• Volkswagen Jetta Mk6 SEL Late Term (2014-2018) FWD
• Volkswagen Jetta Mk6 TDI Late Term (2014-2015) FWD
• Volkswagen Beetle 1.8T and 2.0T (2012-2019) FWD
