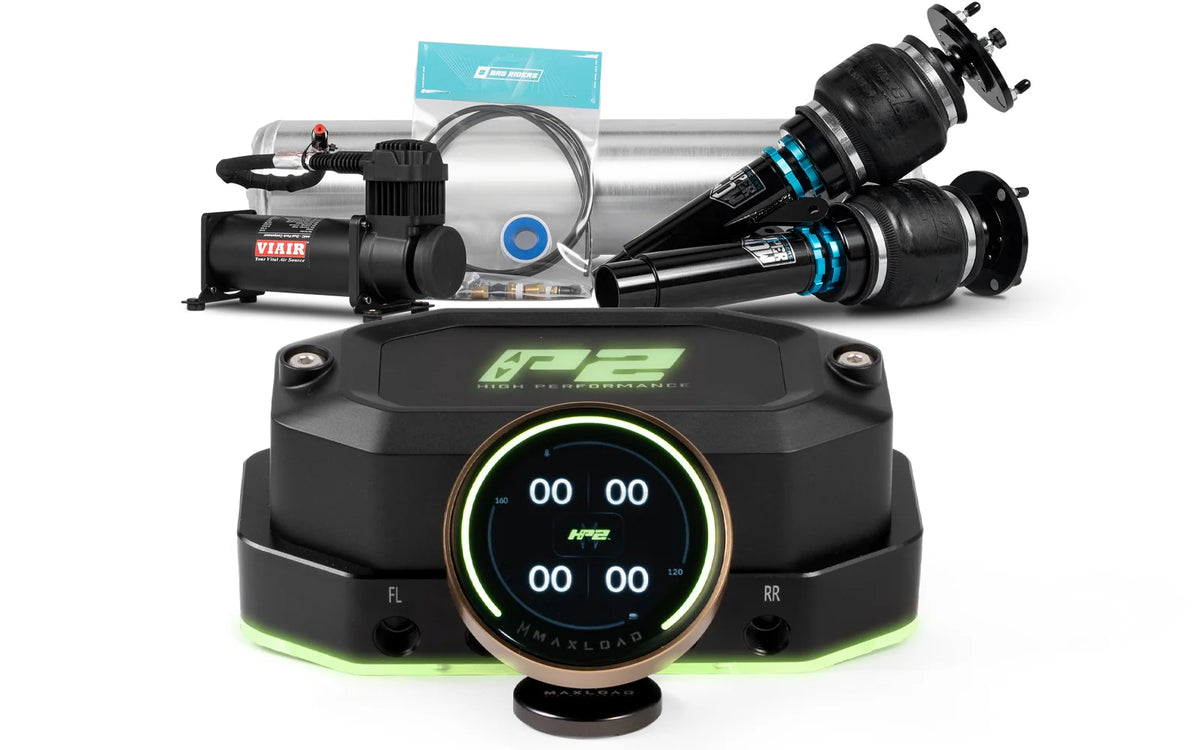

Maxload P2 Air Ride Kit for VW Phaeton
Specifications
Overview
The Maxload P2 for the VW Phaeton is a digital, pressure-based management system featuring 5 programmable presets and individual control of all four air springs. It can also be upgraded to the height-based HP2 management system with the HP2 upgrade. The P2's unique rotary dial controller gives you quick access to any preset by turning the outer ring, or you can use the touchscreen to make other selections. The P2 also supports voice commands, but must first be unlocked by saying "Hey Maxload" to prevent unintended inputs. Maxload also offers a free smartphone app to control your suspension from your phone.
Maxload P2 air management
The MAXLOAD P2 is a pressure-based control system featuring a unique rotary dial controller. It has 5 customizable presets and can be upgraded with the HP2 height sensor kit for even greater preset accuracy. It also includes other features you'd expect from a modern air suspension controller, including individual 4-corner control, pressure readouts, rise-on-start, and a free smartphone app that mimics the rotary controller.
Details
- 5 programmable pressure-based presets
- Upgradable to HP2 for height-based presets
- Rotary dial controller with touchscreen & voice commands
- Tank pressure readout with visual representation
- Individual 4-corner control
- Visual representation of each air spring's travel
- Automatic calibration
- Rise-on-start functionality
- Customizable minimum ride height and lockable controls to prevent unwanted adjustments while driving
Details
- — P2 Manifold
- — P2 Rotary Controller
- — Manifold Power Harness
- — Compressor Power Harness
- — Mounting hardware
- — (4) Height sensors & linkage
- — (4) Height sensor harnesses
- — HP2 Hub & wiring harness
- Aluminum Air Tank of your choice
- Air Tank Fitting Pack (only compatible with tank options in the full kit drop-down menu)
- Compressor(s) of your choice
- Water Trap kit
- Manifold fitting pack
- (1) 60ft Bundle of DOT Approved Air Line
- Air Line Cutter Tool
Build your kit
- Suspension Kit: 1 option
- System & Air Line: 2 options
- HP2 Height Sensor Upgrade: 1 option
- Air Tank: 5 options
- Compressor: 8 options
- Upgraded Compressor Check Valve: 4 options
- Compressor Silencers: 4 options
- Pedestal Mounts: 2 options
Compatible vehicles
- Volkswagen Phaeton 3D (2003-2006) AWD
