Specifications

Overview

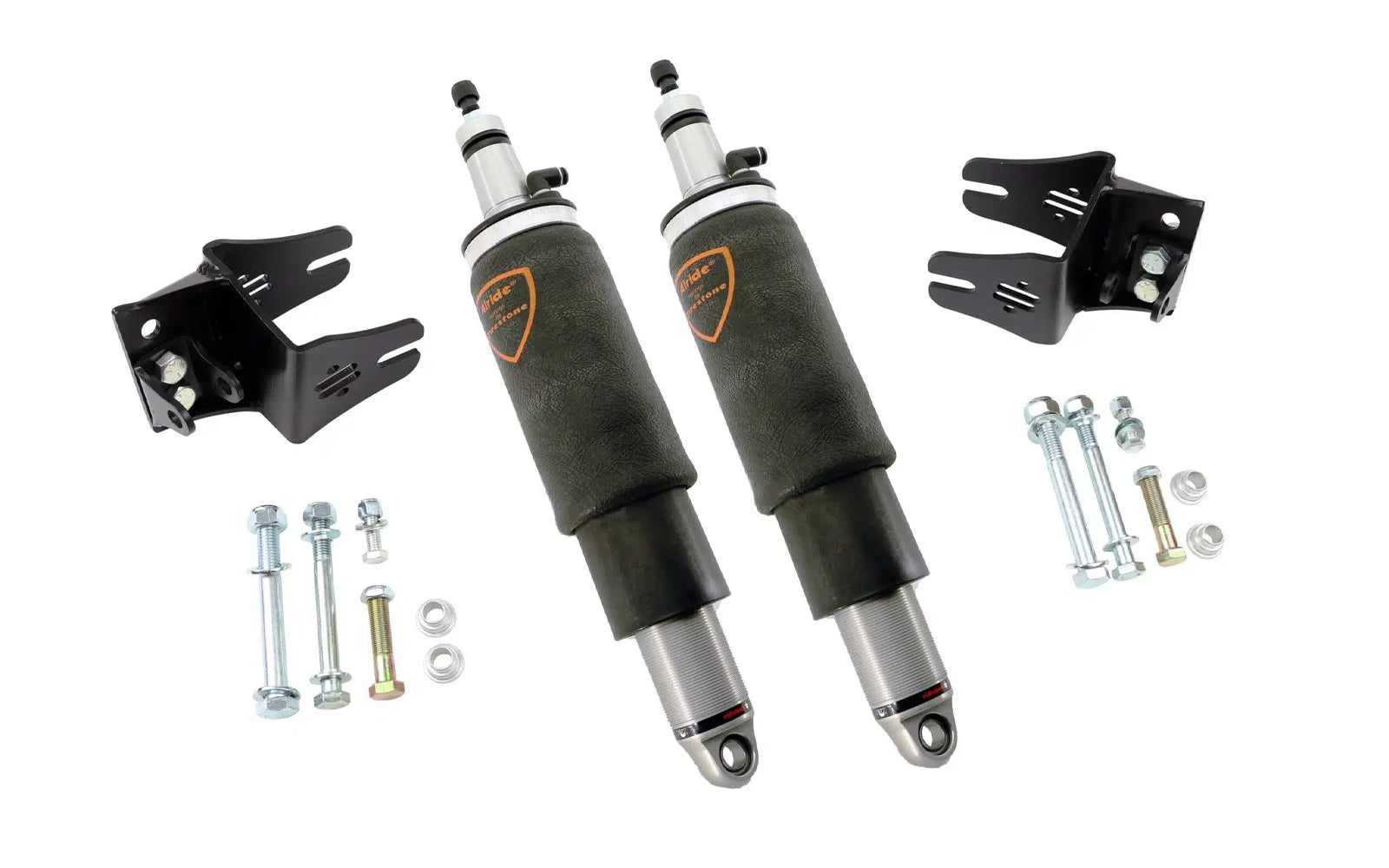

Ridetech's HQ ShockWave Air Suspension for the Ford Mustang 79-04 bolts in just like a rear coilover, swapping out the coil-spring for an adjustable air spring and opening up a wide range of ride height and stance options. Like the front kit, these rear HQ ShockWaves share the same coilover-style, shock-within-a-spring construction as the TQ Series, packaged into a more affordable single rebound-adjustable setup.

A 24 position rebound adjustment knob on each shock body lets you tune the rear ride from a smooth, comfortable cruise to a firmer, more planted feel under hard acceleration or in the corners.

These rear HQ Series ShockWaves share the same air springs and core hardware as the TQ Series, including 1.834" pistons, 5/8" hardened shafts, impact-forged anodized bodies, and Ridetech's 1,000,001 mile warranty. Where they part ways is damping control: HQ skips the TQ's remote reservoir, which is what unlocks separate high speed and low speed compression tuning. For most daily drivers, weekend cruisers, and show cars, the rear HQ setup delivers the stance and ride quality you're after. If you're chasing serious track performance or want to fine-tune handling balance front to rear, the TQ Series is the better fit.

Features of the HQ ShockWave Rear Kit

• Completely redesigned internal design
• Aluminum impact forged construction allows leak free operation
• Single adjustable shock valving
• Easy & precise valve adjustment with 24 rebound clicks
• Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
• Monotube design for superior oil control

What's Included

• (2) Rear Ridetech HQ ShockWaves for Ford Mustang 79-04
• 1/4" PTC air line fittings
• Ridetech's 1,000,001 mile warranty

Technical specifications

• Suspension Type: Shock through Spring
• Drivetrain Compatibility: RWD
• Camber Plates: No
• Bag Type: Sleeve Style
• Damping Adjustment: Yes
• Adjustable Lower Mount: No
• Leader lines: No
• Fittings Included: 1/4"PTC
• Rear Shocks Included: N/A

Compatible vehicles

• Ford Mustang Fox Body (1979-1993) RWD
• Ford Mustang SN95 (1994-2004) RWD
• Ford Mustang SVT Cobra SN95 Early Term (1994-1998) RWD
