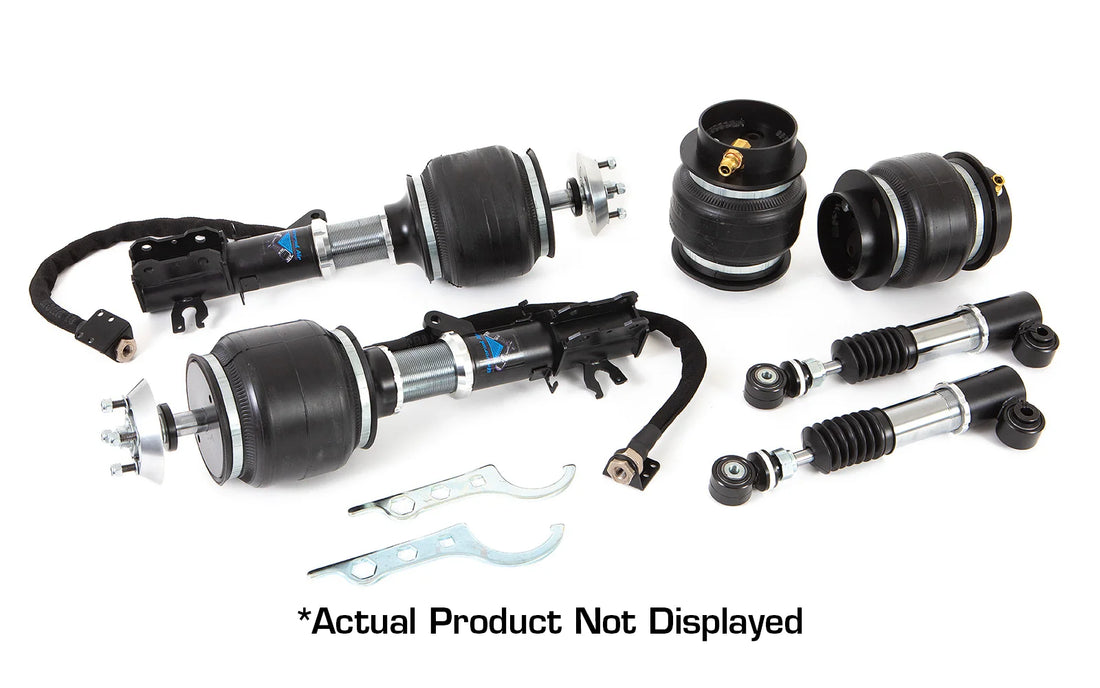

Universal Air Solution Series Air Suspension for Cadillac CT5

Specifications

Overview

The Universal Air Solution Series for the Cadillac CT5 is a vehicle-specific, made-to-order air suspension package built to solve the two biggest complaints with aftermarket air ride: bags that sit too tall or too fat to clear tires and suspension components, and a ride that's either too stiff or too soft to live with daily. Solution Series pairs Universal Air's air springs with proprietary fully threaded dampers to deliver the lowest compressed height, the widest usable travel range, and a ride quality tuned specifically for air.

Universal Air hand-builds every Solution Series kit to order, selecting from over 20 proprietary bag designs to match the exact geometry of your Cadillac CT5. That means the compressed height, travel range, and clearance are dialed in for your application instead of forced to fit it.

Universal Air developed these dampers directly with a top-tier damper manufacturer and tuned them specifically for vehicles running air suspension. They're stiff enough for performance driving and relaxed enough for daily comfort. The threaded damper bodies allow you to extend or shorten the suspension without sacrificing stroke travel or bag pressure.

Premium Construction Throughout

• Upper strut mounts machined from 6061-T6 aluminum with spherical bearings for articulation and rubber isolation for comfort
• Sealed rotary thrust bearings keep dirt and moisture out of the assembly
• 6061-T6 aluminum, hard-anodized bag end caps for long-term durability
• Premium 'AN'-style leader lines with a synthetic rubber core and woven stainless-steel mesh reinforcement braided nylon outer sleeve
• Stainless steel hardware with in-house-milled 6061 aluminum brackets, paired with urethane bushings or pillow-ball bearings depending on application

What's Included

• Universal Air Solution Series front suspension for Cadillac CT5
• Universal Air Solution Series rear suspension for Cadillac CT5
• (2) Spanner tools
• Fittings

Technical specifications

• Front Suspension Type: MacPherson
• Rear Suspension Type: Separate Spring & Shock
• Drivetrain Compatibility: RWD
• Camber Plates: None
• Front Bag Type: Single Bellow
• Rear Bag Type: Single Bellow
• Damping Adjustment: Yes
• Adjustable Lower Mount: Yes
• Leader Lines: Yes
• Fittings Included: 1/4"PTC

Compatible vehicles

• Cadillac CT5 1st Gen (2020-2026) RWD
• Cadillac CT5-V 1st Gen (2020-2026) RWD
