VIAIR — Piston Compressor ★ USA Pack ×2 Gen 2
485C Platinum — Duo Pack
4.48 CFM · 100% @ 200 PSI
4.48 CFM · 100% @ 200 PSI
2 compressors · 4.48 CFM combined · 3/8" fitting · Relays + pressure switch included · Gen 2
📋 Overview
The VIAIR 485C Gen 2 Platinum Duo Pack is the highest-performance dual-compressor configuration in the VIAIR range. Each 485C Gen 2 delivers 2.24 CFM through a 3/8" stainless steel fitting at 100% duty cycle at 200 PSI — one hour of continuous operation at full pressure per unit. In parallel, this pack reaches 4.48 CFM combined with absolute reliability. The pack includes 40A relays, a 165/200 PSI pressure switch and fuse holder for a turnkey installation.
📦Package contents

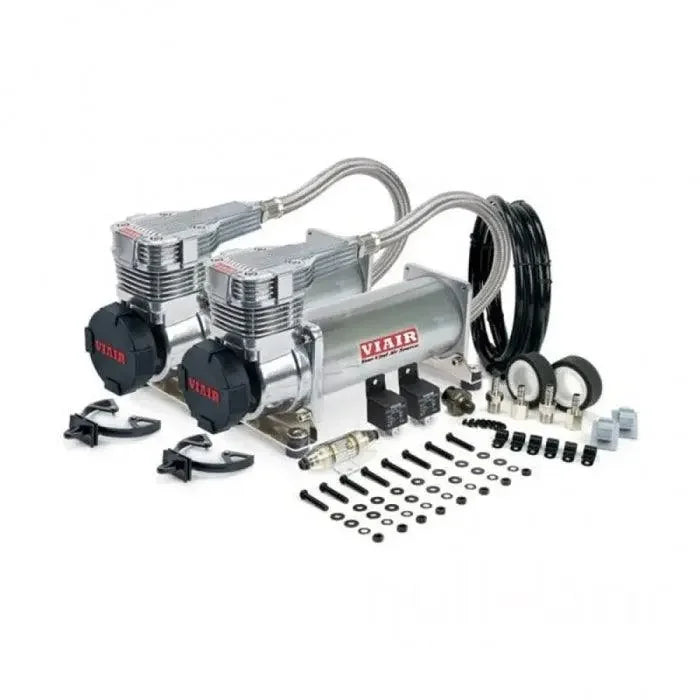

🔧 2 × VIAIR 485C Gen 2 Platinum compressors
🔩 2 × 3/8" stainless steel braided hoses + check valves
🌬️ 2 × Air filters with remote mounts + removable covers
📎 6 × Hose clips + complete hardware
⭐ 2 × 40A relays included
⭐ 1 × 165 PSI ON / 200 PSI OFF pressure switch included
⭐ 1 × Fuse holder included (up to 60A)
4.48 CFM combinedThe highest combined airflow in the entire VIAIR range.
100% @ 200 PSI ×2Continuous operation at maximum pressure on both units.
Ready-to-install pack40A relays × 2 + 165/200 PSI pressure switch + fuse holder — everything included.
⚙️ Technical Specifications
* Values shown per compressor unless otherwise stated
Duty cycle
100 %
@ 200 PSI — true continuous 200 PSI
Flow rate per unit
2.24 CFM x2
Combined flow rate
3.82 CFM
~108 L/min (×2 in parallel)
Maximum pressure
200 PSI
13.8 bar
Voltage
12V
Permanent-magnet motor
Combined maximum amperage
46A
23A per unit @ 13.8V
Required fuse
40A × 2
One dedicated fuse per compressor
Main fitting
3/8" NPT Stainless Steel
Integrated check valves
Pressure switch included
165 / 200 PSI
Cut-on 165 PSI · Cut-off 200 PSI
Maximum recommended tank size
38 L
~10 gallons
Finish
Platinum
Premium · Gen 2
EAN
818114004889
Part number: 48532
🔧 Double-Compressor Installation Recommendations
-
⚡
One dedicated 40A fuse per compressor is mandatory — the 40A relays included in the pack must be used. Never connect both units to a single fuse.
-
💧
Install each compressor only in an area protected from water and heat.
-
🛢️
No lubricating oil required — dry rotor, no periodic maintenance.
-
🔋
Two compressors in parallel place a greater load on the electrical system: a battery in perfect condition and fully charged is essential. A high-capacity alternator is strongly recommended.
-
🔩
Ensure secure mounting and good ground-cable conductivity for each unit, connected directly to the vehicle body.
-
🌬️
Ensure sufficient fresh-air supply for both units.
⚠️
The two 40A fuses are required but not included (relays and pressure switch included). Thread sealant is mandatory — Teflon tape is not recommended. 3/8" tightening torque: 22~24 Nm. Professional installation recommended.
