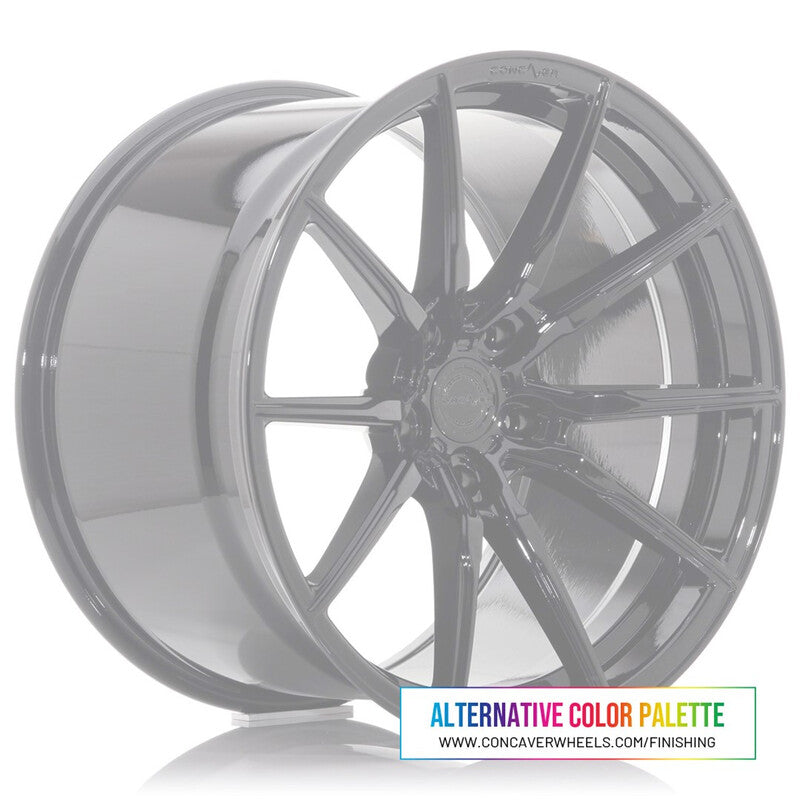

Concaver CVR4 22x9.5" (5 trous - sur mesure) ET0-35, Couleur Personnalisée

Concaver 4.9/5 from 342 customer reviews

Concaver CVR4 22x9.5" (5 holes - custom) ET0-35, Custom Color

Ref. CVR42295D5X0074CF

€839,99 incl. VAT

Secure payment
14-day returns
Technical support

🔒 Secure payment 🚚 Tracked shipping across Europe ↩️ 14-day returns 🛠️ Technical support⭐ Rated 4.9/5 by our customers🏁 Enthusiasts since 2017

Concaver

CVR4 22×9.5" — Custom Color

5 studs, 108 to 130 mm selectable · ET 0 to 35 · Made to order

Sold individually Custom-made TÜV approved Hybrid forged Hardware included

The Concaver CVR4

A double Y-spoke design, one of the most elaborate in the Concaver catalog. The deep center highlights large brake calipers.

Technical specifications

Diameter

22 inches

Width

9.5 inches

Center bore

74.1 mm

Color

Custom Color

Bolt pattern

5 holes108 to 130 mm

Offset (ET)

ET 0 to 35

Max. load

980 kg / wheel

74.1 mm center bore: if your vehicle's hub is smaller, a centering ring fills the gap and centers the wheel correctly. They are supplied according to the vehicle information you provide.

TÜV approval: this model is certified by the German organization, the most demanding reference on the European market. The report lists the covered vehicles and, where applicable, the mounting conditions. Ask us for the report corresponding to your vehicle if needed.

Wheel machined to order

Specify your vehicle when ordering

This Concaver is not pre-machined: its bolt pattern (5 holes, from 108 to 130 mm) and its offset (ET 0 to 35) are machined to your specifications. Enter the exact model of your vehicle in the form above — without this information, the wheel cannot be manufactured. Not sure? Contact us before ordering; we will determine the correct measurements together.

Specific offset: the wheel is supplied in ET 0 by default. If you want another value within the range, indicate it in the form: machining to this specification costs €20 per wheel, automatically added to the cart.

You place your order

Choose the diameter, width and color, then enter your vehicle and, if needed, the desired offset (+€20 per wheel).

We confirm the measurements

We check the bolt pattern, offset and clearance on your vehicle before starting production.

The wheel is machined

Allow approximately one additional week for machining or custom paint.

Shipping

Delivered with the hardware, centering rings and matching center cap.

What's included

Concaver CVR4 22×9.5" wheel (sold individually)
Hardware adapted to your vehicle — included
Centering rings adapted to your vehicle — free with any order of 4 wheels
Matching Concaver center cap — always included, regardless of quantity
TÜV approval
Bolt pattern and offset machined to your specifications
Maximum permitted load: 980 kg per wheel

Construction: hybrid forged

Concaver uses Flow Forming, also known as flow forging: the wheel is stretched while hot as it rotates, densifying the material around the tire bead seat. The result falls between a classic cast wheel and a fully forged wheel — significantly stiffer and lighter than the former, without reaching the cost of the latter.

This process allows Concaver to offer deeply concave designs in large diameters at an affordable price.

Why Concaver

Machined to your specifications

Custom bolt pattern and offset: the wheel adapts to your vehicle, not the other way around.

TÜV approved

The most demanding European certification, rare in this price segment.

Advice before purchase

Bolt pattern, offset, clearance, camber: we confirm the fitment with you before machining begins.

Fitting and hardware

Unlike most brands, the appropriate hardware is included with your Concaver wheels, along with the centering rings and center cap. Simply specify your vehicle when ordering.

Need additional hardware or specific parts? See our lug nut packs and wheel bolt packs, or ask us for advice.
