Cast-iron turbo manifold with T25 flange/with Wastegate connection for Audi/VW 1.8/2.0l TFSI Turbo engines — TA Technix
Ref. 79VW006
- Secure payment
- 14-day returns
- Technical support

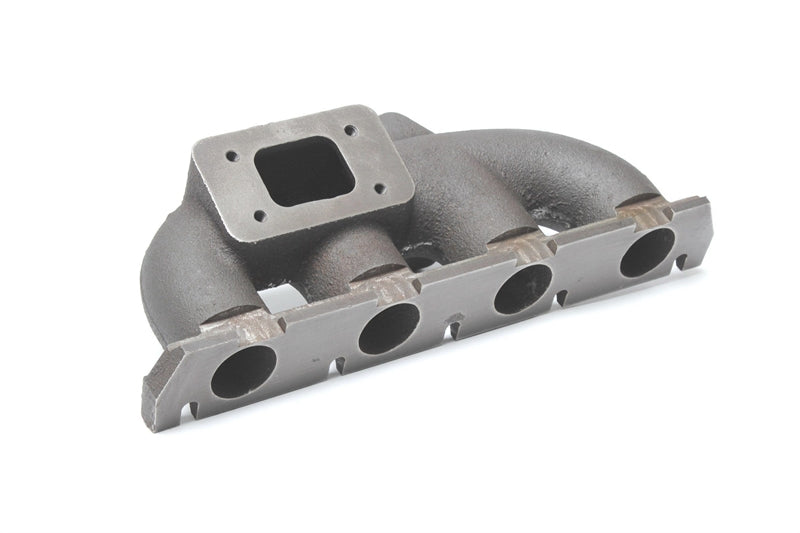

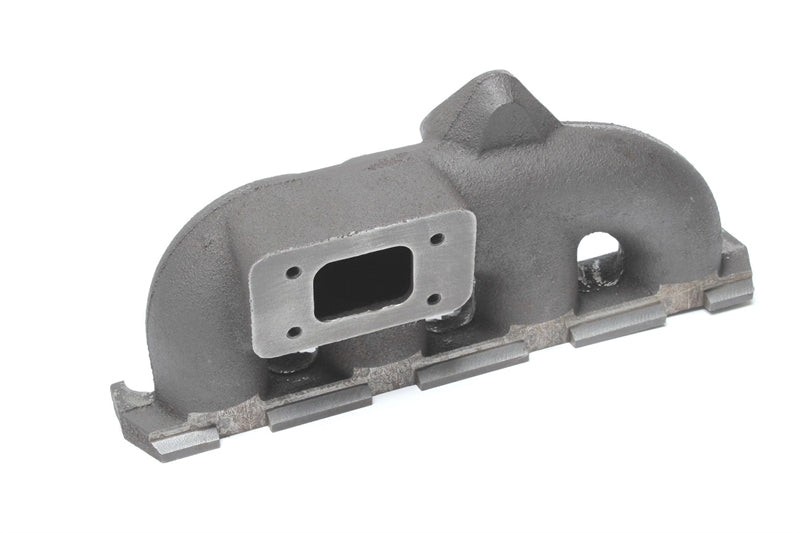

Cast iron turbo manifold with T25 flange/with Wastegate connection for Audi/VW 1.8/2.0L TFSI Turbo engines
Features
Technical details
- 35/38 mm Wastegate connection
- Turbocharger with T25 connection flange
- Connection dimensions on flange: 73 x 40 mm, for example:
- Audi A3 (8P)
- VW Golf V (1K)
- VW Golf VI (5K)
What this part changes
The turbo manifold supports the turbine and withstands temperatures of up to 900 °C: it is the most heavily stressed part of a turbocharged engine. An unobstructed design builds boost earlier; a suitable flange allows you to install a larger turbine than the original one, making it possible to target a different power level.
The choice of material matters just as much as the design. Cast iron withstands heat cycles without cracking and dampens vibrations. Stainless steel is lighter and allows for better designs, but requires well-designed supports: a cantilevered turbine will eventually split a weld.
What to plan for
- An external wastegate connection becomes necessary as soon as you significantly exceed the original boost pressure.
- Support the turbine: provide a support bracket if the manifold does not have one.
- High-temperature hardware and gaskets, tightened to the correct torque and rechecked after a few heat cycles.
Compatible vehicles
| Brand | Model | Engine | Years |
|---|---|---|---|
| Audi | GT2554R/GT2560R/GT28R/GT28RS/GT2860RS/GT2871R/GT2876R/GT3071R/GT-R25/GT-R2571/GT-R2871 | — | — |
