Intake tube kit / Direct intake kit for BMW 2 Series, 3 Series, 4 Series with B48 engine code — TA Technix
Ref. 90BM023
- Secure payment
- 14-day returns
- Technical support

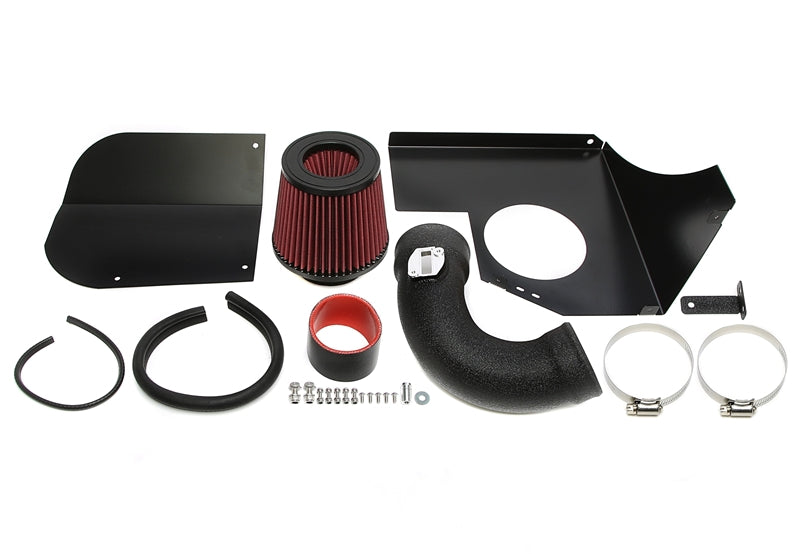

Intake Tube Kit / Direct Intake Kit for BMW 2 Series, 3 Series, 4 Series with B48 engine code
Specifications
What this part changes

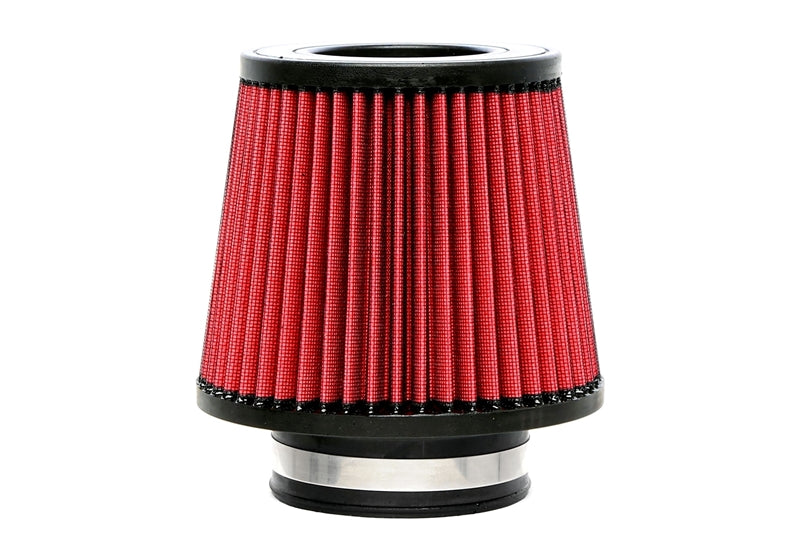

A direct intake kit replaces the airbox with a short pipe and a cone filter. Two things change: airflow, because the airbox baffles are removed, and intake noise, which is clear and very noticeable under load - this is often the real reason for buying one.
All the performance benefit comes down to air temperature. A filter installed in the open engine bay draws in air at 60 °C or more: it is less dense and gives back what it had gained. Serious kits come with a heat shield and a cold-air intake; without one or the other, the gain is theoretical. Carbon conducts significantly less heat than aluminium.
What to plan for
- Insulate the filter from engine heat: use a heat shield and cold-air intake, otherwise the kit is purely decorative.
- Check the mass airflow sensor connection: the diameter must match to avoid jolts.
- Reconnect the crankcase ventilation hoses left by the original airbox.
Compatible vehicles
| Make | Model | Engine | Years |
|---|---|---|---|
| BMW | 2 Series (F22, F23) | 220i + 230i - B48 engine code | 2012–2021 |
| BMW | 3 Series (F30, F31, F34) | 320i + 330i - B48 engine code | 2011–2019 |
| BMW | 4 Series (F32, F33, F36) | 420i + 430i - B48 engine code | 2016–2021 |
