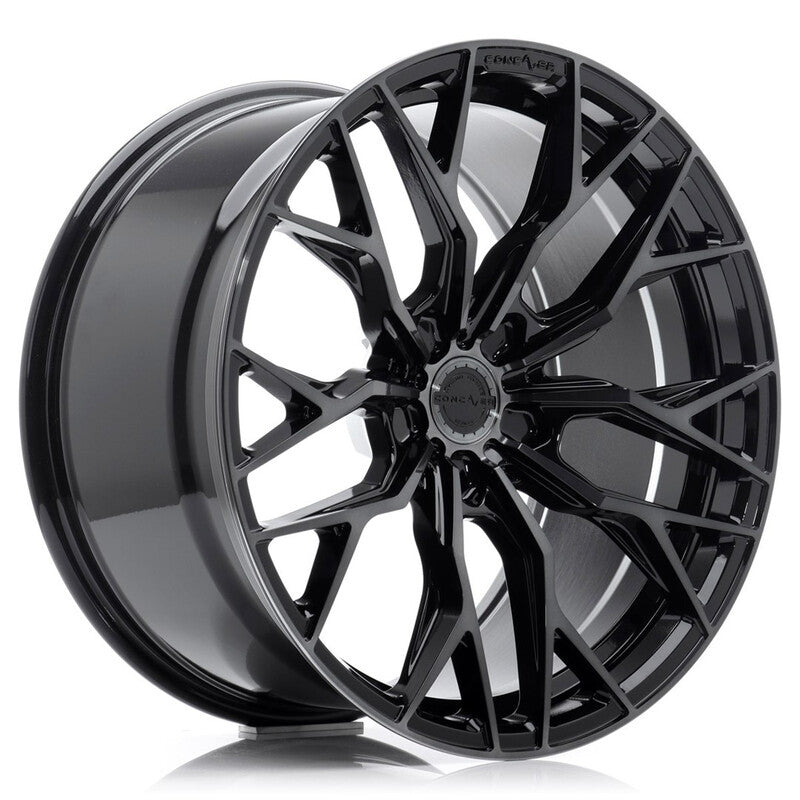

Concaver CVR1 20x10.5" (5 trous - sur mesure) ET15-64, Double Noir Brillant

Concaver 4.9/5 from 346 customer reviews

Concaver CVR1 20x10.5" (5 holes – custom) ET15-64, Double Gloss Black

Ref. CVR1X20105P5X1572DTB

674,99 € incl. VAT

Secure payment
14-day returns
Technical support

🔒 Secure payment 🚚 Tracked shipping across Europe ↩️ 14-day returns 🛠️ Technical support⭐ Rated 4.9/5 by our customers🏁 Enthusiasts since 2017

Concaver

CVR1 20×10.5" — Gloss Black Double

5 holes, 108 to 130 mm selectable · ET 15 to 64 · Machined to order

Sold individually Custom-made TÜV-approved Hybrid forged Hardware included

The Concaver CVR1

Five slender twin spokes and a pronounced concavity: the CVR1 is Concaver's founding design, the one that established the brand in the segment of supercar-inspired concave wheels.

Technical specifications

Diameter

20 inches

Width

10.5 inches

Center bore

72.6 mm

Color

Gloss Black Double

Bolt pattern

5 holes108 to 130 mm

Offset (ET)

ET 15 to 64

Max. load

980 kg / wheel

72.6 mm center bore: if your vehicle's hub is smaller, a centering ring eliminates the gap and ensures the wheel is centered. They are supplied according to the vehicle you provide us with.

TÜV approval: this model is certified by the German organization, the most demanding reference on the European market. The report lists the vehicles covered and, where applicable, the fitting conditions. Ask us for the report corresponding to your vehicle if needed.

Wheel machined to order

Specify your vehicle when ordering

This Concaver is not machined in advance: its bolt pattern (5 holes, from 108 to 130 mm) and its offset (ET 15 to 64) are made to your specifications. Enter your vehicle's exact model in the form above — without this information, the wheel cannot be manufactured. Not sure? Contact us before ordering; we'll determine the correct specifications together.

Specific offset: the wheel is supplied in ET 15 by default. If you want another value within the range, indicate it in the form: machining to this specification costs €20 per wheel, automatically added to the cart.

You place your order

Choose the diameter, width, and color, then enter your vehicle and, if needed, the desired offset (+€20 per wheel).

We confirm the specifications

We check the bolt pattern, offset, and clearance on your vehicle before starting production.

The wheel is machined

Allow approximately one additional week for machining or custom paint.

Shipping

Delivery includes the hardware, centering rings, and matching center cap.

What's included

Concaver CVR1 20×10.5" wheel (sold individually)
Hardware suited to your vehicle — included
Centering rings suited to your vehicle — free with any order of 4 wheels
Matching Concaver center cap — always included, regardless of quantity
TÜV approval
Bolt pattern and offset machined to your specifications
Maximum permissible load: 980 kg per wheel

Construction: hybrid forged

Concaver uses Flow Forming, also known as flow forging: the wheel is stretched while hot as it rotates, densifying the material around the tire bead seat. The result lies between a traditional cast wheel and a fully forged wheel — considerably stiffer and lighter than the former, without reaching the cost of the latter.

This process enables Concaver to offer deeply concave designs in large diameters at an affordable price.

Why Concaver

Machined to your specifications

Bolt pattern and offset made to order: the wheel adapts to your vehicle, not the other way around.

TÜV-approved

The most demanding European certification, rare in this price segment.

Advice before purchase

Bolt pattern, offset, clearance, camber: we confirm the fitment with you before starting machining.

Fitting and hardware

Unlike most brands, the appropriate hardware is included with your Concaver wheels, along with the centering rings and center cap. Simply specify your vehicle when ordering.

Need additional hardware or specific parts? See our lug nut packs and wheel bolt packs, or ask us for advice.
