Concaver CVR4 20x9.5" (5 trous - sur mesure) ET22-44, Rouge Candy

Concaver 4.9/5 from 342 customer reviews

Concaver CVR4 20x9.5" (5 holes - custom) ET22-44, Candy Red

Ref. CVR42095M5X2272CR

599,99 € incl. VAT

Secure payment
14-day returns
Technical support

🔒 Secure payment 🚚 Tracked shipping across Europe ↩️ 14-day returns 🛠️ Technical support⭐ Rated 4.9/5 by our customers🏁 Enthusiasts since 2017

Concaver

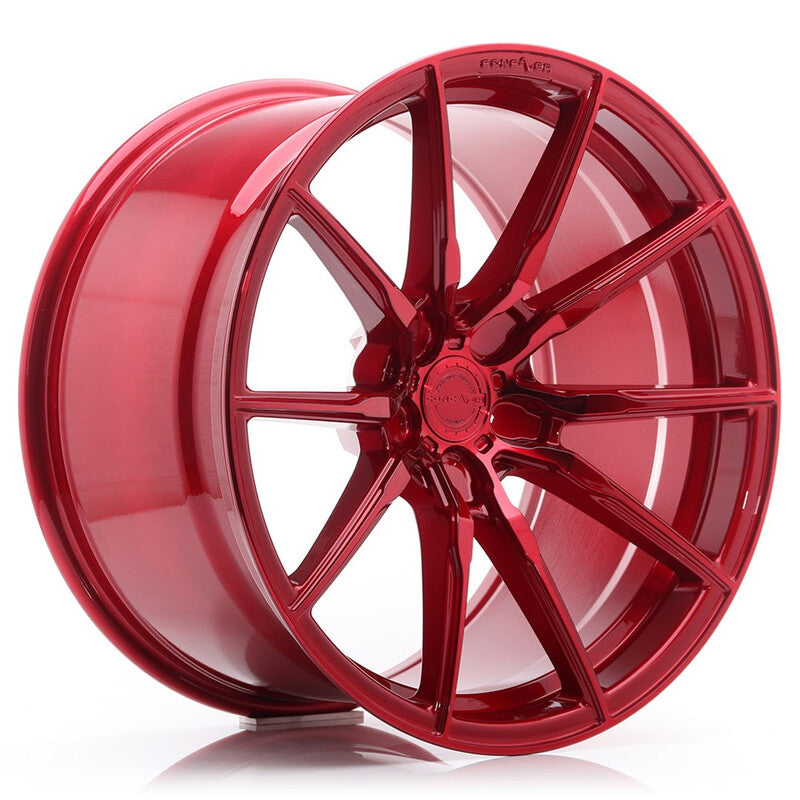

CVR4 20×9.5" — Candy Red

5 holes, 108 to 130 mm selectable · ET 22 to 44 · Machined to order

Sold individually Custom-made TÜV approved Hybrid forged Hardware included

The Concaver CVR4

A double Y-spoke design, one of the most intricate in the Concaver catalog. The central recess highlights large brake calipers.

Technical specifications

Diameter

20 inches

Width

9.5 inches

Center bore

72.6 mm

Color

Candy Red

Bolt pattern

5 holes108 to 130 mm

Offset (ET)

ET 22 to 44

Max. load

760 kg / wheel

72.6 mm center bore: if your vehicle's hub is smaller, a centering ring fills the gap and ensures the wheel is centered. Rings are supplied according to the vehicle details you provide.

TÜV approval: this model is certified by the German organization, the most demanding standard on the European market. The report lists the covered vehicles and, where applicable, the installation conditions. Ask us for the report corresponding to your vehicle if needed.

Wheel machined to order

Specify your vehicle when ordering

This Concaver is not pre-machined: its bolt pattern (5 holes, from 108 to 130 mm) and its offset (ET 22 to 44) are made to your specifications. Enter the exact model of your vehicle in the form above — without this information, the wheel cannot be manufactured. Unsure? Contact us before ordering; we'll determine the correct specifications together.

Specific offset: the wheel is supplied in ET 22 by default. If you want another value within the range, indicate it in the form: machining to this specification costs €20 per wheel, automatically added to the cart.

You place your order

Choose the diameter, width, and color, then enter your vehicle details and, if needed, the desired offset (+€20 per wheel).

We validate the specifications

We check the bolt pattern, offset, and clearance on your vehicle before starting production.

The wheel is machined

Allow approximately one additional week for machining or a custom paint finish.

Shipping

Delivery includes the hardware, centering rings, and center cap suited to your vehicle.

What's included

Concaver CVR4 20×9.5" wheel (sold individually)
Hardware suited to your vehicle — included
Centering rings suited to your vehicle — free with any order of 4 wheels
Matching Concaver center cap — always included, regardless of quantity
TÜV approval
Bolt pattern and offset machined to your specifications
Maximum permissible load: 760 kg per wheel

Construction: hybrid forged

Concaver uses Flow Forming, also known as flow forging: the wheel is stretched while hot during rotation, which densifies the material around the tire bead seat. The result sits between a conventional cast wheel and a fully forged wheel — significantly stiffer and lighter than the former, without reaching the cost of the latter.

This process allows Concaver to offer deeply concave designs in large diameters at a controlled price.

Why Concaver

Machined to your specifications

Bolt pattern and offset made to order: the wheel adapts to your vehicle, not the other way around.

TÜV approved

The most demanding European certification, rare in this price segment.

Advice before purchase

Bolt pattern, offset, clearance, camber: we confirm the fitment with you before machining begins.

Installation and hardware

Unlike most brands, the appropriate hardware is included with your Concaver wheels, along with the centering rings and center cap. Simply specify your vehicle when ordering.

Need additional hardware or specific parts? See our lug nut packs and our wheel bolt packs, or ask us for advice.
