Concaver CVR4 20x9.5" (5 trous - sur mesure) ET22-44, Couleur Personnalisée

Concaver 4.9/5 from 343 customer reviews

Concaver CVR4 20x9.5" (5 holes - custom) ET22-44, Custom Color

Ref. CVR42095M5X2272CF

664,99 € incl. VAT

Secure payment
14-day returns
Technical support

🔒 Secure payment 🚚 Tracked shipping across Europe ↩️ 14-day returns 🛠️ Technical support⭐ Rated 4.9/5 by our customers🏁 Enthusiasts since 2017

Concaver

CVR4 20×9.5" — Custom Color

5-lug, 108 to 130 mm options · ET 22 to 44 · Machined to order

Sold individually Custom-made TÜV approved Hybrid forged Hardware included

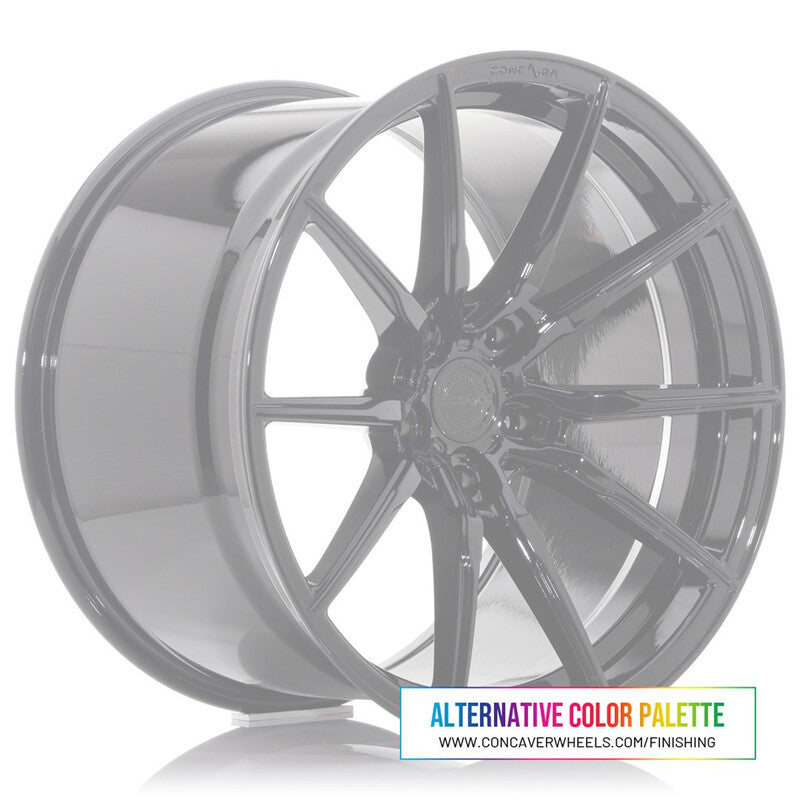

The Concaver CVR4

A double Y-spoke design, one of the most intricate in the Concaver catalog. The deep central recess highlights large brake calipers.

Technical specifications

Diameter

20 inches

Width

9.5 inches

Center bore

72.6 mm

Color

Custom Color

Bolt pattern

5-lug108 to 130 mm

Offset (ET)

ET 22 to 44

Max. load

760 kg / wheel

72.6 mm center bore: if your vehicle's hub is smaller, a centering ring fills the gap and centers the wheel properly. They are supplied according to the vehicle details you provide.

TÜV approval: this model is certified by the German organization, the most demanding reference on the European market. The report lists the covered vehicles and, where applicable, the fitting conditions. Ask us for the report corresponding to your vehicle if you need it.

Machined to order

Specify your vehicle when ordering

This Concaver is not pre-machined: its bolt pattern (5-lug, from 108 to 130 mm) and offset (ET 22 to 44) are machined to your specifications. Enter your vehicle's exact model in the form above — without this information, the wheel cannot be manufactured. Not sure? Contact us before ordering; we'll determine the correct specifications together.

Specific offset: the wheel is supplied in ET 22 by default. If you would like another value within the range, indicate it in the form: machining to this specification costs €20 per wheel, automatically added to the cart.

You place your order

Choose the diameter, width, and color, then enter your vehicle details and, if needed, the desired offset (+€20 per wheel).

We confirm the specifications

We check the bolt pattern, offset, and clearance on your vehicle before starting production.

The wheel is machined

Allow approximately one additional week for machining or a custom paint finish.

Shipping

Delivered with the appropriate hardware, centering rings, and center cap.

What's included

Concaver CVR4 20×9.5" wheel (sold individually)
Hardware suitable for your vehicle — included
Centering rings suitable for your vehicle — free with any order of 4 wheels
Matching Concaver center cap — always included, regardless of quantity
TÜV approval
Bolt pattern and offset machined to your specifications
Maximum permitted load: 760 kg per wheel

Construction: hybrid forged

Concaver uses Flow Forming, also known as flow forging: the wheel is stretched while hot as it rotates, densifying the material along the tire bead seat. The result sits between a classic cast wheel and a fully forged wheel — significantly stiffer and lighter than the former, without reaching the cost of the latter.

This process allows Concaver to offer deeply concave designs in large diameters at an affordable price.

Why Concaver

Machined to your specifications

Custom bolt pattern and offset: the wheel adapts to your vehicle, not the other way around.

TÜV approved

The most demanding European certification, rare in this price segment.

Pre-purchase advice

Bolt pattern, offset, clearance, camber: we confirm the fitment with you before starting machining.

Fitting and hardware

Unlike most brands, the appropriate hardware is included with your Concaver wheels, along with the centering rings and center cap. Simply specify your vehicle when ordering.

Need additional hardware or specific parts? See our lug nut packs and wheel bolt packs, or ask us for advice.
