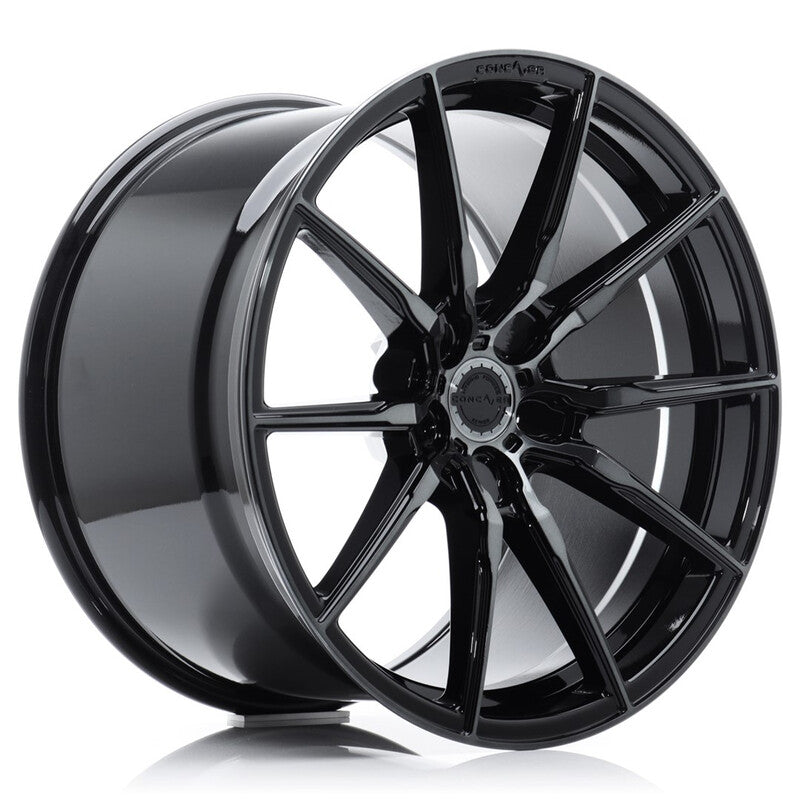

Concaver CVR4 20x9" 5x112 ET45, Double Noir Brillant

Concaver 4.9/5 from 343 customer reviews

Concaver CVR4 20x9" 5x112 ET45, Double Gloss Black

Ref. CVR42090P5L4566DTB

574,99 € incl. VAT

Secure payment
14-day returns
Technical support

🔒 Secure payment 🚚 Tracked shipping across Europe ↩️ 14-day returns 🛠️ Technical support⭐ Rated 4.9/5 by our customers🏁 Enthusiasts since 2017

Concaver

CVR4 20×9" — Gloss Black Double

5×112 · ET 45

Sold individually TÜV approved Hybrid forged Hardware included

The Concaver CVR4

A double Y-spoke design, one of the most intricate in the Concaver catalog. The deep central recess highlights large brake calipers.

Technical specifications

Diameter

20 inches

Width

9 inches

Center bore

66.6 mm

Color

Gloss Black Double

Bolt pattern

5×112

Offset (ET)

ET 45

Max. load

760 kg / wheel

66.6 mm center bore: if your vehicle's hub is smaller, a centering ring fills the gap and ensures the wheel is properly centered. They are supplied based on the vehicle details you provide.

TÜV approval: this model is certified by the German organization, the most demanding reference on the European market. The report lists the covered vehicles and, where applicable, the fitting conditions. Ask us for the report for your vehicle if needed.

What's included

Concaver CVR4 20×9" wheel (sold individually)
Hardware adapted to your vehicle — included
Centering rings adapted to your vehicle — free with any order of 4 wheels
Matching Concaver center cap — always included, regardless of quantity
TÜV approval
Maximum permissible load: 760 kg per wheel

Construction: hybrid forged

Concaver uses Flow Forming, also known as rotary forging: the wheel is stretched while hot as it rotates, densifying the material around the tire bead seat. The result lies between a conventional cast wheel and a fully forged wheel — significantly stiffer and lighter than the former, without reaching the cost of the latter.

This process allows Concaver to offer deeply concave designs in large diameters at an accessible price.

Why Concaver

Machined to your specifications

Custom bolt pattern and offset: the wheel adapts to your vehicle, not the other way around.

TÜV approved

The most demanding European certification, rare in this price range.

Advice before purchase

Bolt pattern, offset, clearance, camber: we confirm the fitment with you before machining begins.

Fitting and hardware

Unlike most brands, the appropriate hardware is included with your Concaver wheels, along with the centering rings and center cap. Simply provide your vehicle details when ordering.

Need additional hardware or specific parts? See our lug nut packs and wheel bolt packs, or ask us for advice.
