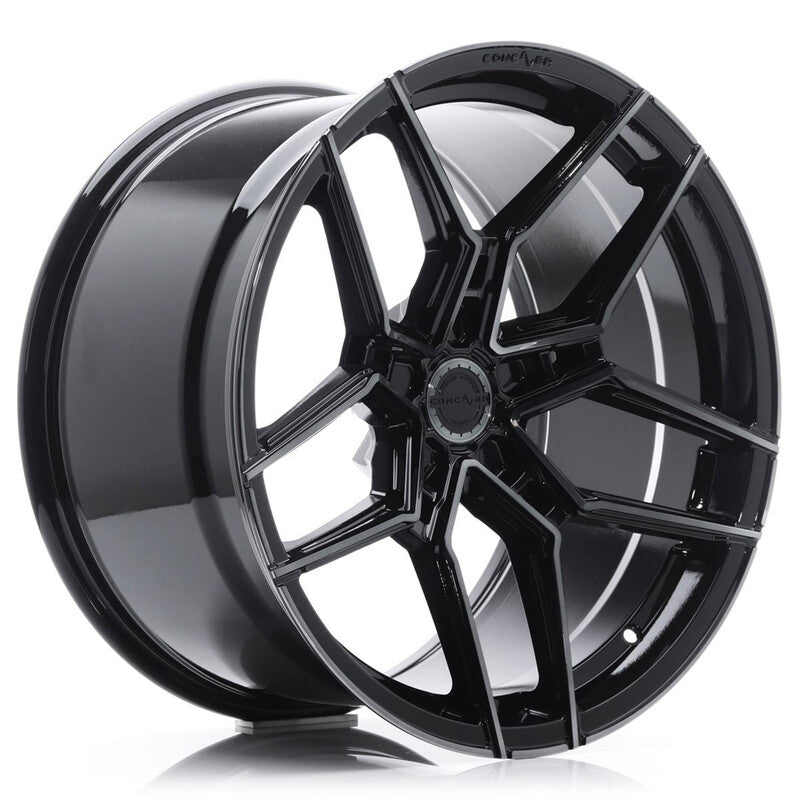

Concaver CVR5 20x9" (5 trous - sur mesure) ET20-51, Double Noir Brillant

Concaver 4.9/5 from 343 customer reviews

Concaver CVR5 20x9" (5 holes - custom) ET20-51, Double Gloss Black

Ref. CVR52090P5X2072DTB

574,99 € incl. VAT

Secure payment
14-day returns
Technical support

🔒 Secure payment 🚚 Tracked shipping across Europe ↩️ 14-day returns 🛠️ Technical support⭐ Rated 4.9/5 by our customers🏁 Enthusiasts since 2017

Concaver

CVR5 20×9" — Gloss Black Double

5-lug, 108 to 130 mm selectable · ET 20 to 51 · Machined to order

Sold individually Custom-made TÜV approved Hybrid forged Hardware included

The Concaver CVR5

Slim split spokes and a flush lip, inspired by Italian supercar wheels. A design that visually elongates the vehicle.

Technical specifications

Diameter

20 inches

Width

9 inches

Center bore

72.6 mm

Color

Gloss Black Double

Bolt pattern

5-lug108 to 130 mm

Offset (ET)

ET 20 to 51

Max. load

800 kg / wheel

72.6 mm center bore: if your vehicle's hub is smaller, a centering ring fills the gap and centers the wheel correctly. Rings are supplied according to the vehicle details you provide.

TÜV approval: this model is certified by the German organization, the most demanding standard on the European market. The report lists the covered vehicles and, where applicable, the installation conditions. Ask us for the report for your vehicle if needed.

Wheel machined to order

Specify your vehicle when ordering

This Concaver is not machined in advance: its bolt pattern (5-lug, from 108 to 130 mm) and offset (ET 20 to 51) are produced to your specifications. Enter your vehicle's exact model in the form above — without this information, the wheel cannot be manufactured. Not sure? Contact us before ordering; we'll determine the correct specifications together.

Specific offset: the wheel is supplied in ET 20 by default. If you want another value within the range, specify it in the form: machining to this specification costs €20 per wheel, added automatically to the cart.

You place your order

Choose the diameter, width and color, then enter your vehicle details and, if needed, the desired offset (+€20 per wheel).

We verify the specifications

We check the bolt pattern, offset and clearance on your vehicle before starting production.

The wheel is machined

Allow approximately one additional week for machining or custom paintwork.

Shipping

Delivered with the hardware, centering rings and center cap suited to your vehicle.

What's included

Concaver CVR5 20×9" wheel (sold individually)
Hardware suited to your vehicle — included
Centering rings suited to your vehicle — free with every order of 4 wheels
Matching Concaver center cap — always included, regardless of quantity
TÜV approval
Bolt pattern and offset machined to your specifications
Maximum permissible load: 800 kg per wheel

Construction: hybrid forged

Concaver uses Flow Forming, also known as flow turning: the wheel is stretched while hot as it rotates, which densifies the material around the tire bead seat. The result lies between a conventional cast wheel and a fully forged wheel — significantly stiffer and lighter than the former, without reaching the cost of the latter.

This process allows Concaver to offer deeply concave designs in large diameters at a controlled price.

Why Concaver

Machined to your specifications

Bolt pattern and offset made to measure: the wheel adapts to your vehicle, not the other way around.

TÜV approved

The most demanding European certification, rare in this price segment.

Pre-purchase advice

Bolt pattern, offset, clearance, camber: we confirm the fitment with you before starting machining.

Installation and hardware

Unlike most brands, the appropriate hardware is included with your Concaver wheels, along with the centering rings and center cap. Simply specify your vehicle when ordering.

Need additional hardware or specific parts? See our lug nut packs and wheel bolt packs, or ask us for advice.
