Concaver CVR6 22x11.5" (5 trous - sur mesure) ET17-61, Double Noir Brillant

Concaver 4.9/5 from 343 customer reviews

Concaver CVR6 22x11.5" (5 holes - custom) ET17-61, Double Gloss Black

Ref. CVR622115D5X1774DTB

874,99 € incl. VAT

Secure payment
14-day returns
Technical support

🔒 Secure payment 🚚 Tracked shipping across Europe ↩️ 14-day returns 🛠️ Technical support⭐ Rated 4.9/5 by our customers🏁 Enthusiasts since 2017

Concaver

CVR6 22×11.5" — Gloss Black Double

5 studs, 108 to 130 mm available · ET 17 to 61 · Machined to order

Sold individually Made to measure TÜV approved Hybrid forged Hardware included

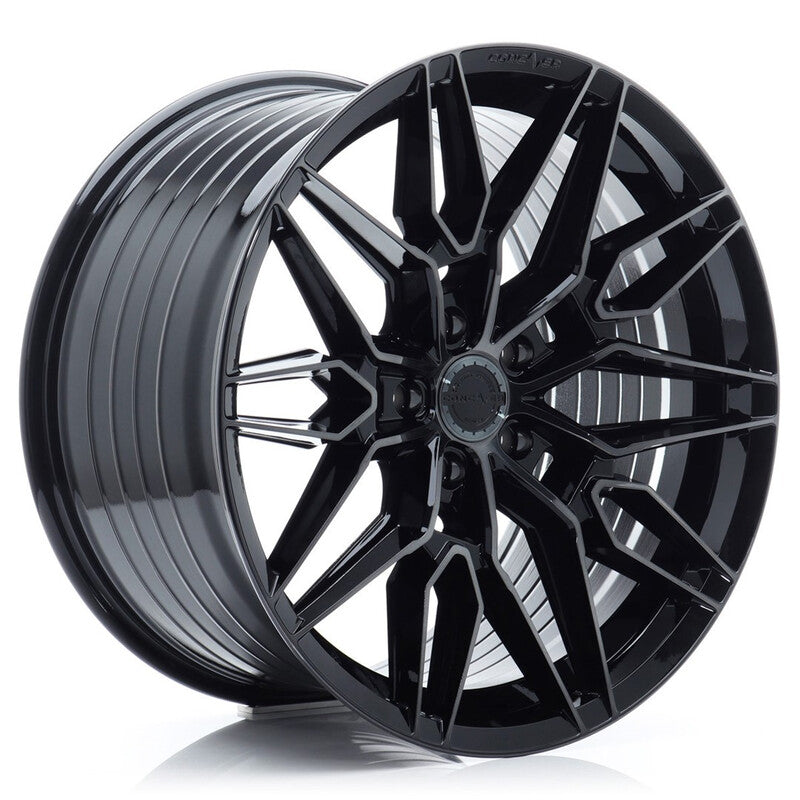

The Concaver CVR6

A dense, technical multi-spoke star design. The CVR6 is particularly well suited to large diameters on premium SUVs.

Technical specifications

Diameter

22 inches

Width

11.5 inches

Center bore

74.1 mm

Color

Gloss Black Double

Bolt pattern

5 studs108 to 130 mm

Offset (ET)

ET 17 to 61

Max. load

920 kg / wheel

74.1 mm center bore: if your vehicle's hub is smaller, a centering ring fills the gap and properly centers the wheel. Rings are supplied according to the vehicle you provide.

TÜV approval: this model is certified by the German organization, the most demanding reference in the European market. The report lists the covered vehicles and, where applicable, the fitting conditions. Ask us for the report corresponding to your vehicle if needed.

Wheel machined to order

Specify your vehicle when ordering

This Concaver is not pre-machined: its bolt pattern (5 studs, from 108 to 130 mm) and its offset (ET 17 to 61) are machined to your specifications. Enter your exact vehicle model in the form above — without this information, the wheel cannot be manufactured. Unsure? Contact us before ordering; we will determine the correct measurements together.

Specific offset: the wheel is supplied in ET 17 by default. If you want another value within the range, indicate it in the form: machining to this specification costs €20 per wheel, automatically added to the cart.

You place your order

Choose the diameter, width and color, then enter your vehicle and, if needed, the desired offset (+€20 per wheel).

We confirm the measurements

We check the bolt pattern, offset and clearance on your vehicle before starting production.

The wheel is machined

Allow approximately one extra week for machining or a custom paint finish.

Shipping

Delivered with the appropriate hardware, centering rings and center cap.

What's included

Concaver CVR6 22×11.5" wheel (sold individually)
Hardware adapted to your vehicle — included
Centering rings adapted to your vehicle — free with every order of 4 wheels
Matching Concaver center cap — always included, regardless of quantity
TÜV approval
Bolt pattern and offset machined to your specifications
Maximum permissible load: 920 kg per wheel

Construction: hybrid forged

Concaver uses Flow Forming, also known as flow forging: the wheel is stretched while hot as it rotates, densifying the material around the tire bead seat. The result falls between a traditional cast wheel and a fully forged wheel — significantly stiffer and lighter than the former, without the cost of the latter.

This process allows Concaver to offer deeply concave designs in large diameters at an accessible price.

Why Concaver

Machined to your specifications

Bolt pattern and offset made to measure: the wheel adapts to your vehicle, not the other way around.

TÜV approved

The most demanding European certification, rare in this price segment.

Advice before purchase

Bolt pattern, offset, clearance, camber: we confirm the fitment with you before machining begins.

Fitting and hardware

Unlike most brands, the appropriate hardware is included with your Concaver wheels, along with the centering rings and center cap. Simply specify your vehicle when ordering.

Need additional hardware or specific parts? See our lug nut packs and wheel bolt packs, or ask us for advice.
