Concaver CVR6 22x9" (5 trous - sur mesure) ET10-52, Bronze

Concaver 4.9/5 from 343 customer reviews

Concaver CVR6 22x9" (5 holes - custom) ET10-52, Bronze

Ref. CVR62290P5X1074BBZ

749,99 € incl. VAT

Secure payment
14-day returns
Technical support

🔒 Secure payment 🚚 Tracked shipping across Europe ↩️ 14-day returns 🛠️ Technical support⭐ Rated 4.9/5 by our customers🏁 Enthusiasts since 2017

Concaver

CVR6 22×9" — Bronze

5 bolt holes, 108 to 130 mm available · ET 10 to 52 · Machined to order

Sold individually Custom-made TÜV approved Hybrid forged Hardware included

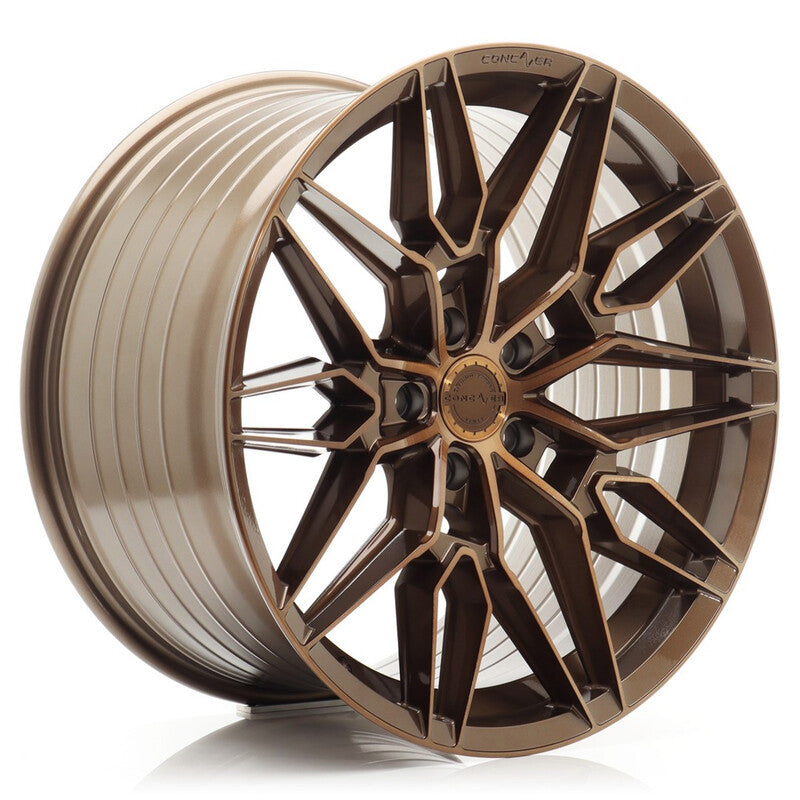

The Concaver CVR6

A dense, technical design with multiple star-shaped spokes. The CVR6 is particularly well suited to large diameters on premium SUVs.

Technical specifications

Diameter

22 inches

Width

9 inches

Center bore

74.1 mm

Color

Bronze

Bolt pattern

5 bolt holes108 to 130 mm

Offset (ET)

ET 10 to 52

Max. load

920 kg / wheel

74.1 mm center bore: if your vehicle's hub is smaller, a centering ring fills the gap and ensures that the wheel is properly centered. Rings are supplied according to the vehicle information you provide.

TÜV approval: this model is certified by the German organization, the most demanding reference in the European market. The report lists the covered vehicles and, where applicable, the installation conditions. Ask us for the report corresponding to your vehicle if needed.

Wheel machined to order

Specify your vehicle when ordering

This Concaver is not machined in advance: its bolt pattern (5 bolt holes, from 108 to 130 mm) and its offset (ET 10 to 52) are machined to your specifications. Enter the exact model of your vehicle in the form above — without this information, the wheel cannot be manufactured. Unsure? Contact us before ordering; we will determine the correct specifications together.

Specific offset: the wheel is supplied in ET 10 by default. If you want another value within the range, specify it in the form: machining to this specification costs €20 per wheel, automatically added to the cart.

You place your order

Choose the diameter, width and color, then provide your vehicle details and, if needed, the desired offset (+€20 per wheel).

We verify the specifications

We check the bolt pattern, offset and clearance on your vehicle before starting production.

The wheel is machined

Allow approximately one additional week for machining or custom paint.

Shipping

Delivered with the hardware, centering rings and center cap suited to your vehicle.

What's included

Concaver CVR6 22×9" wheel (sold individually)
Hardware suited to your vehicle — included
Centering rings suited to your vehicle — free with any order of 4 wheels
Matching Concaver center cap — always included, regardless of quantity
TÜV approval
Bolt pattern and offset machined to your specifications
Maximum permissible load: 920 kg per wheel

Construction: hybrid forged

Concaver uses Flow Forming, also known as flow forging: the wheel is stretched while hot as it rotates, which densifies the material along the tire bead seat. The result falls between a traditional cast wheel and a fully forged wheel — significantly stiffer and lighter than the former, without reaching the cost of the latter.

This process allows Concaver to offer highly concave designs in large diameters at an accessible price.

Why Concaver

Machined to your specifications

Custom bolt pattern and offset: the wheel adapts to your vehicle, not the other way around.

TÜV approved

The most demanding European certification, rare in this price segment.

Pre-purchase advice

Bolt pattern, offset, clearance, camber: we confirm the fitment with you before machining begins.

Installation and hardware

Unlike most brands, the appropriate hardware is included with your Concaver wheels, along with the centering rings and center cap. Simply specify your vehicle when ordering.

Need additional hardware or specific parts? See our nut packs and wheel bolt packs, or ask us for advice.
